Description

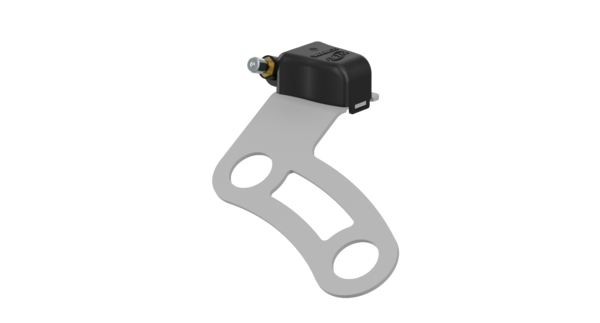

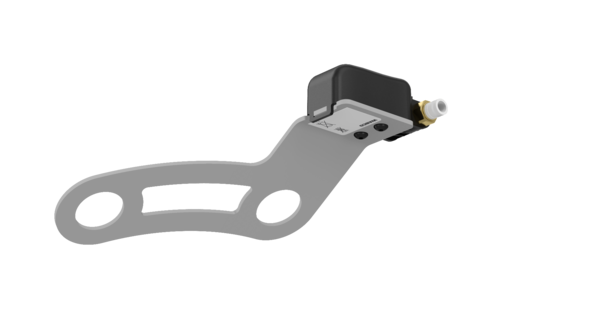

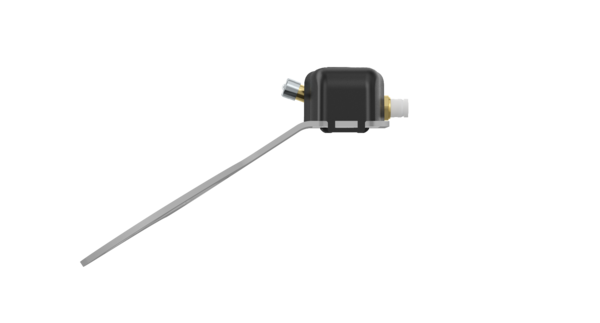

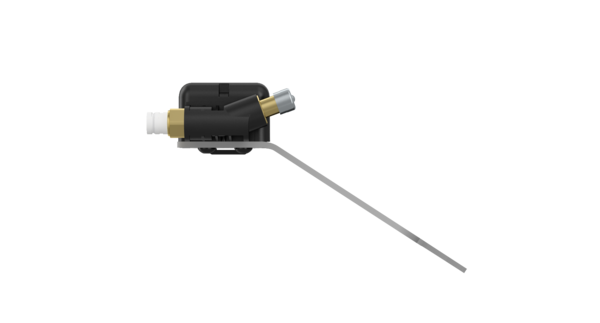

IVTM Wheel Module 2
Part Number: 9607310630
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Angle | 33° |
| Angle between holes | 36° |
| Calculated Volume (dm³) | 0.89088 |
| Diameter | 335.0 mm |
| Mounting | 2x Ø 26 mm |
| Operational range | 2 to 14 bar |
| Port angle | 170° |
| Port thread 1 | VG 8 |
| Port thread 2 | Voss 203 Ø 6 x 1.5 |
| Product category | Device |
| Protection class | IP 6K6K, 6K7, 6K9K |
| Technical specification | OE specification |
| Temperature range | -40°C to +90°C |
| Type | Wheel Modul 2 |
| GTIN | 04057875295730 |
| Size (mm x mm x mm) | 192 x 116 x 40 |
| UPC | 193133366959 |
| Weight | 0.23 kg |
| Weight (kg) | 0.23 |
| Weight (lb) | 0.50706 |
