Description

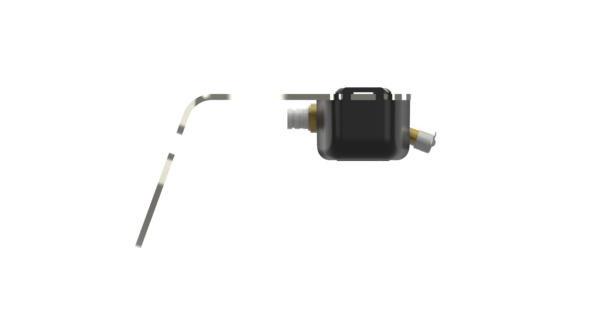

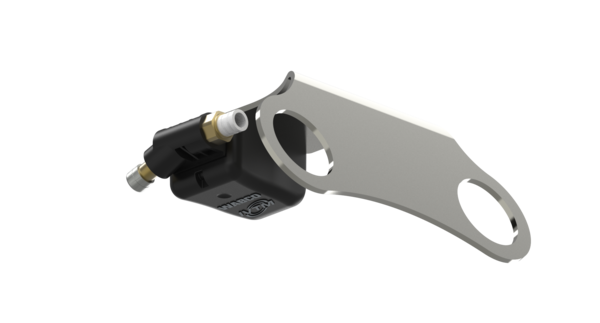

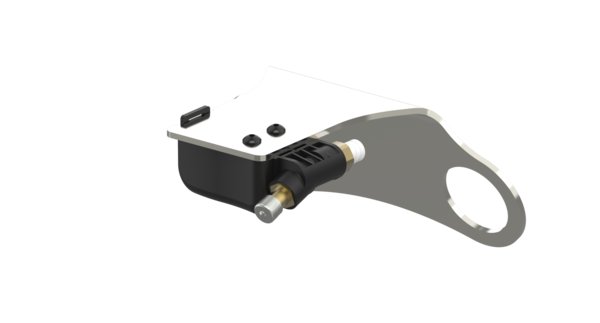

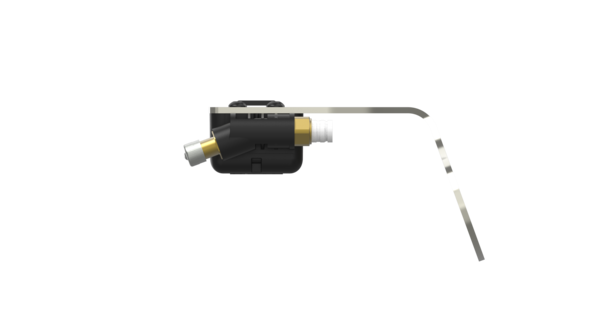

IVTM Wheel Module
Part Number: 9607311400
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Angle | 70° |
| Angle between holes | 36° |
| Calculated Volume (dm³) | 1.061 |
| Diameter | 335.0 mm |
| Mounting | 2x Ø 32 mm |
| Operational range | 2 to 14 bar |
| Port angle | 170° |
| Port thread 1 | VG 8 |
| Port thread 2 | Voss 203 Ø 6 x 1.5 |
| Product category | Device |
| Protection class | IP 6K6K, 6K7, 6K9K |
| Technical specification | OE specification |
| Temperature range | -40°C to +90°C |
| Type | Wheel Modul 2 |
| GTIN | 04057875295846 |
| Size (mm x mm x mm) | 149 x 113 x 63 |
| UPC | 193133367369 |
| Weight | 0.29 kg |
| Weight (kg) | 0.295 |
| Weight (lb) | 0.6504 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 81274210258 |
| NEOPLAN | 81274210258 |
