Description

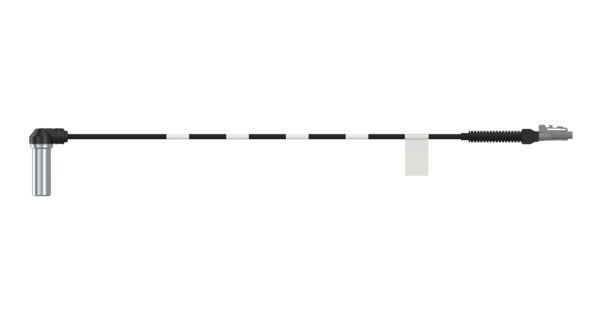

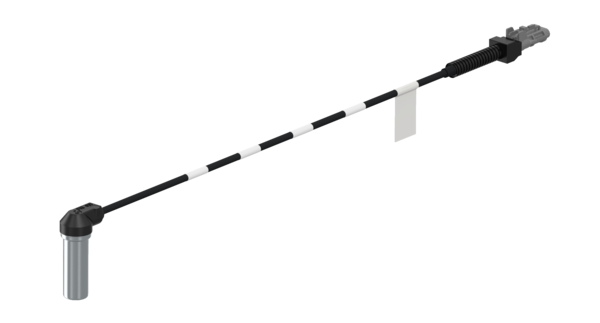

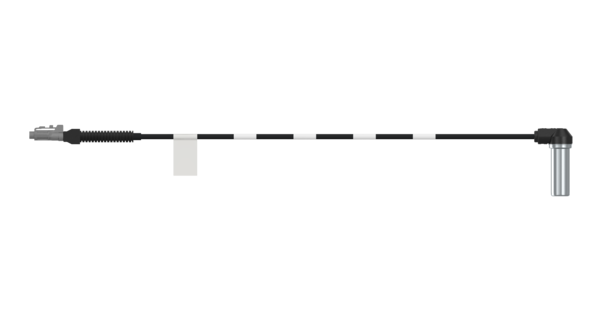

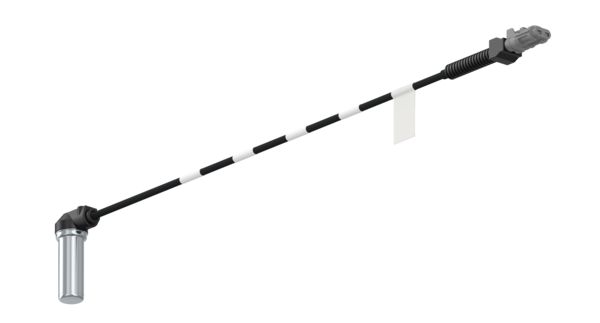

Inductive Sensor with Plug
Part Number: 9410322620
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.578 |
| Diameter | 16.0 mm |
| Electrical connection | X1 = 8 pole, X6 = 8 pole, 4x sensor connector |
| Length | 860 mm |
| Mounting | Bushing |
| Product category | Device |
| Protection class | IP 69K ISO 20653 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | S+ |
| Version | Radial |
| GTIN | 04057875291121 |
| Size (mm x mm x mm) | 170 x 170 x 20 |
| UPC | 193133448815 |
| Weight (kg) | 0.062 |
| Weight (lb) | 0.1367 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FREIGHTLINER | TDAS9410322620 |
| KENWORTH | S941-032-262-0 |
| MACK | S9410322620 |
| MACK | 6300-9410322620 |
| MERITOR | S9410322620 |
| PETERBILT | S941-032-262-0 |
| VOLVO | WAB9410322620 |
