Description

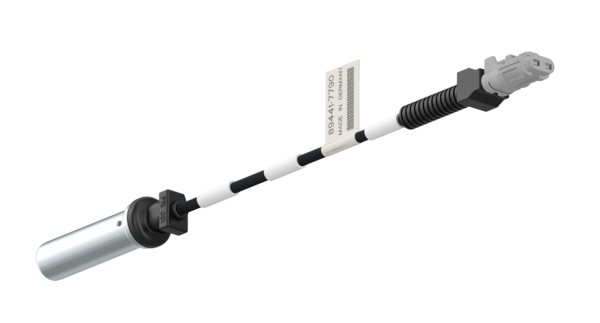

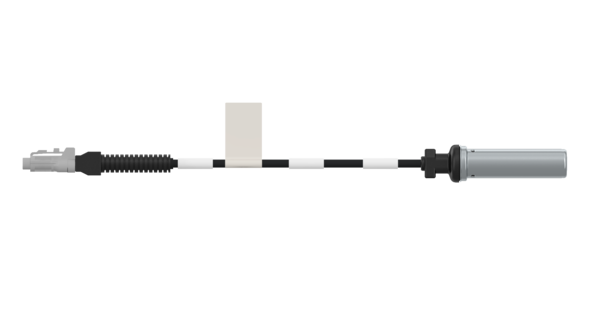

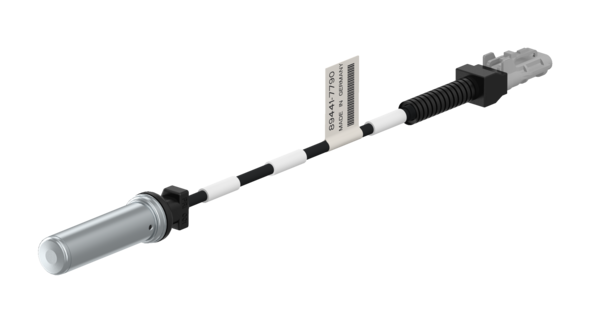

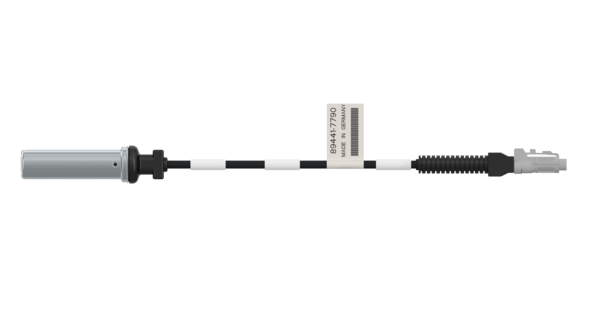

Inductive Sensor with Plug
Part Number: 9410322630
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.54 |
| Diameter | 16.0 mm |
| Electrical connection | X1 = 8 pole, X6 = 8 pole, 4x sensor connector |
| Length | 830 mm |
| Mounting | Bushing |
| Product category | Device |
| Protection class | IP 69K ISO 20653 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | S+ |
| Version | Axial |
| GTIN | 04057875291114 |
| Size (mm x mm x mm) | 150 x 180 x 20 |
| UPC | 193133448822 |
| Weight (kg) | 0.0646 |
| Weight (lb) | 0.1424 |
OEM Cross References
| Brand | Reference No |
|---|---|
| KENWORTH | S941-032-263-0 |
| MACK | 8235-S9410322630 |
| MACK | 6300-9410322630 |
| MERITOR | S9410322630 |
| PETERBILT | S941-032-263-0 |
| VOLVO | WAB9410322630 |
