Description

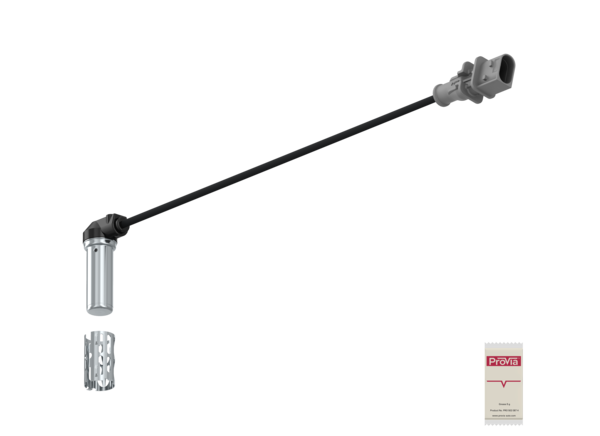

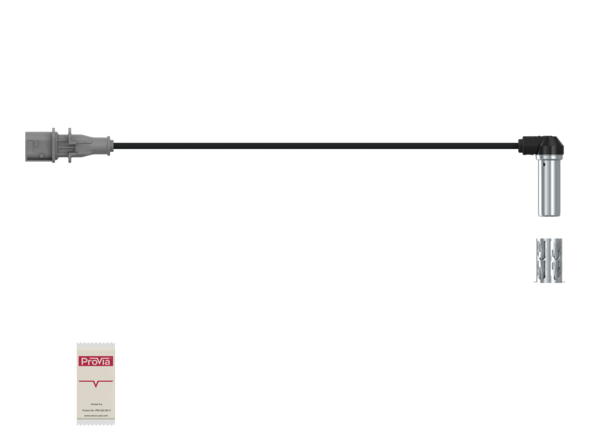

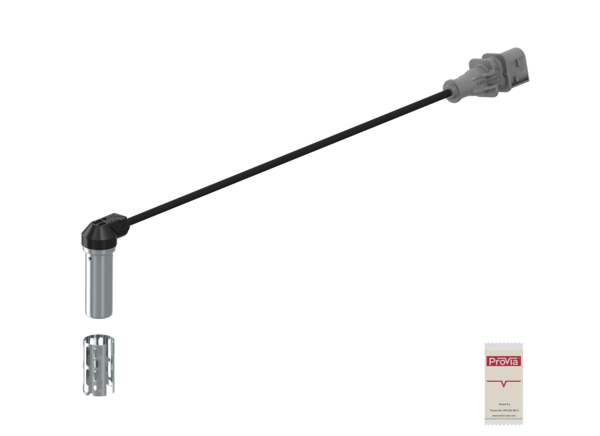

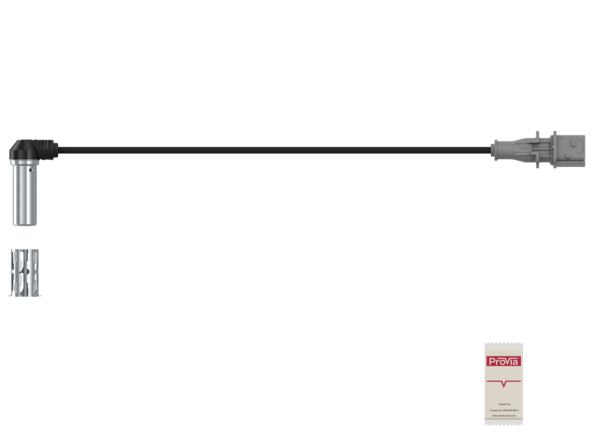

Inductive Sensor with HDSCS Connector
Part Number: PRO0320080
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 2.709 |
| Code plug | B |
| Color | Green-grey |
| Diameter | 16.0 mm |
| Electrical connection | Tyco: C-114-18743 |
| Length | 1400 mm |
| Mounting | Bushing |
| ProVia warranty | 1 year |
| Product category | Device |
| Protection class | IP 68, IP 6K9K ISO 20653 |
| Technical specification | AM specification |
| Temperature range | -30°C to +90°C |
| Version | Radial |
| GTIN | 04057877004972 |
| Size (mm x mm x mm) | 215 x 210 x 60 |
| UPC | 193134004744 |
| Weight (kg) | 0.1 |
| Weight (lb) | 0.2205 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1862602 |
| DAF | 1869290 |
| LEYLAND DAF | EX1862602 |
