Description

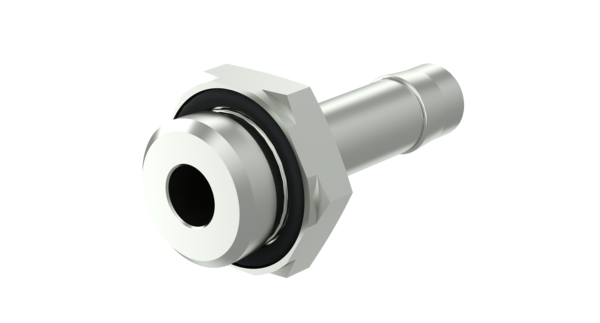

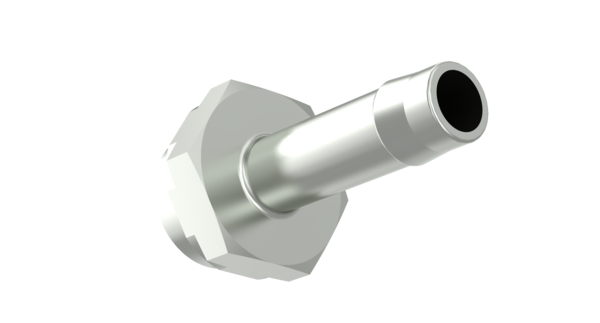

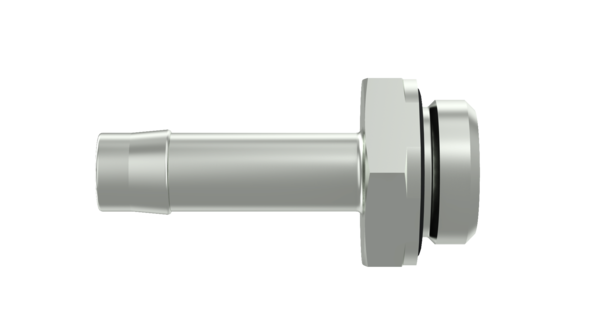

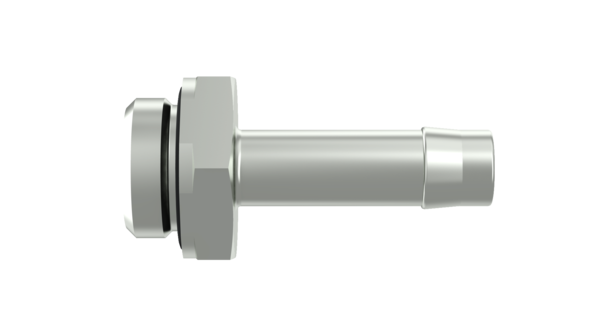

Hose Stud
Part Number: 8931294022

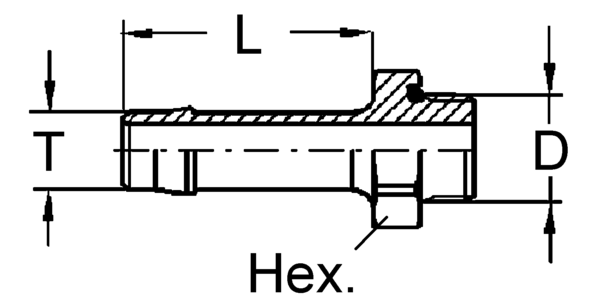

Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Stud coupling |
| Body material | Steel |
| Calculated Volume (dm³) | 0 |
| Inner diameter | 9.0 mm |
| Length | 40.0 mm |
| Max. operating pressure | 10.0 bar |
| Outer diameter | 12.0 mm |
| Port thread 2 | Hose Nozzle Ø 12 mm |
| Product category | Component |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Thread d | M22 x 1.5 |
| Tube diameter | 11 x 3.5 mm |
| Type | Hose nipple |
| Wrench size | 28.0 mm |
| GTIN | 04057875254195 |
| Size (mm x mm x mm) | 57 x 28 x 32,4 |
| UPC | 193133492436 |
| Weight (kg) | 0.072 |
| Weight (lb) | 0.15873 |
OEM Cross References
| Brand | Reference No |
|---|---|
| CASE IH | 9512531 |
| FAYMONVILLE | 2077 |
| SCANIA | 1935199 |
