Description

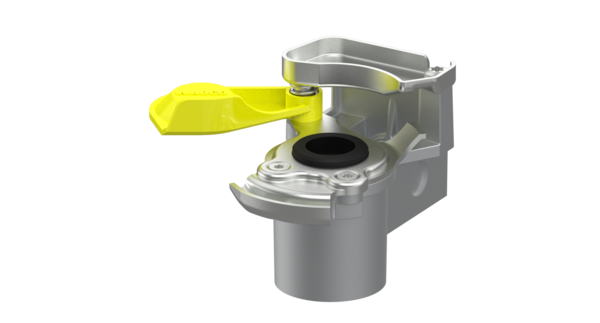

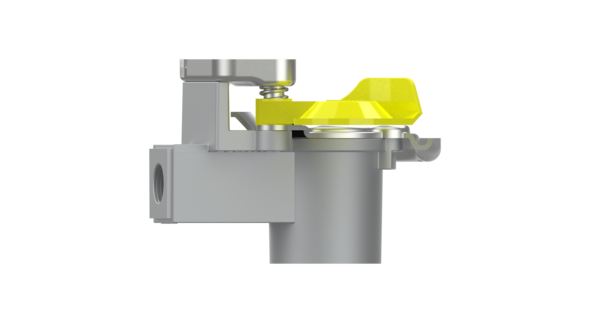

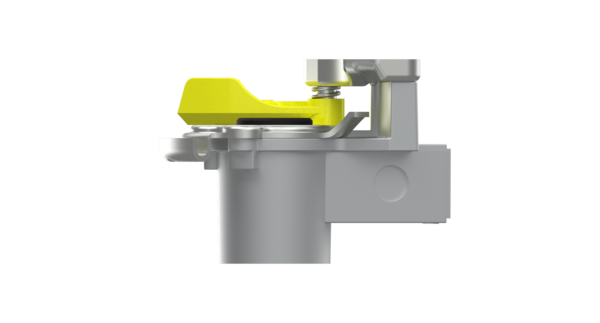

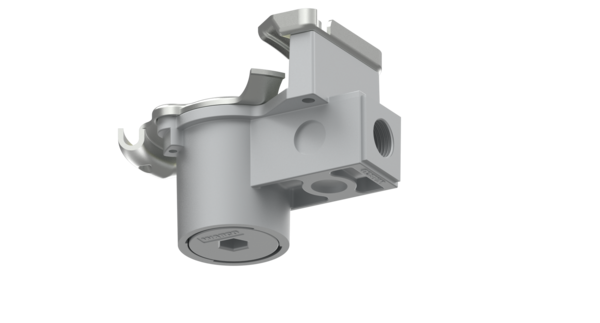

Hose Coupling with Integrated Filter
Part Number: 9522010030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Trailer |
| Calculated Volume (dm³) | 0.4446 |
| Color | Black/Black |
| Filter | Yes |
| Max. operating pressure | 8.5 bar |
| Port thread 1 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Product category | Component |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Test connection | no |
| Type | With filter |
| Version | Without test connection |
| GTIN | 7895851046641 |
| Size (mm x mm x mm) | 101 x 62 x 71 |
| UPC | 193133449010 |
| Weight (kg) | 0.348 |
| Weight (lb) | 0.767208 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518208 |
| DOLL | 7104504 |
| FAYMONVILLE | 82111 |
| JOHN DEERE | 2480057 |
| JOHN DEERE | WZ2480057 |
| JOHN DEERE | DC214639 |
| KENWORTH | S952-201-003-0 |
| KÖGEL | 6500333 |
| LIEBHERR | 10167538 |
| MERITOR | S9522010030 |
| PETERBILT | S952-201-003-0 |
| SCANIA | 1935534 |
| VOLVO | WA9522010030 |
