Description

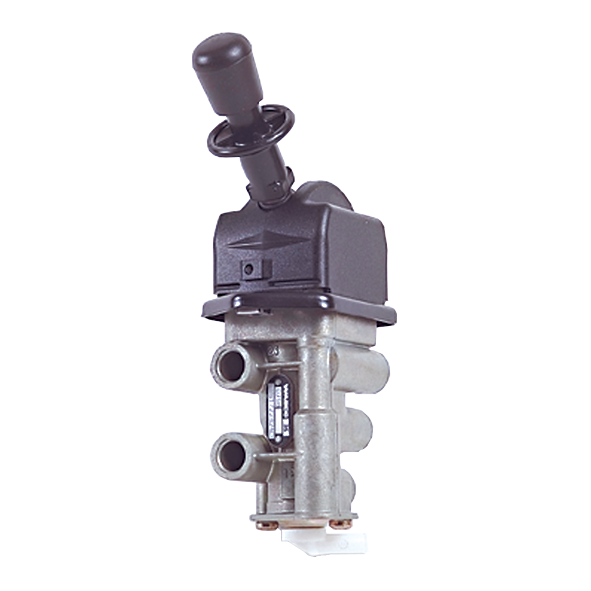

Hand Brake Valve
Part Number: 9617223247
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation angle | 85° |
| Calculated Volume (dm³) | 1.3936 |
| Color | Black/Black |
| Distance between holes | 80 mm |
| Exchange unit for | 9617223240 |
| Exhaust | Hose nozzle Ø 8.5 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x M6 |
| Port thread 11 | M14 x 1.5 |
| Port thread 21 | M14 x 1.5 |
| Port thread 22 | M14 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851049567 |
| Size (mm x mm x mm) | 205 x 103 x 66 |
| UPC | 193133369677 |
| Weight (kg) | 1.151 |
| Weight (lb) | 2.5375 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505329R |
| PACCAR | 1505329R |
