Description

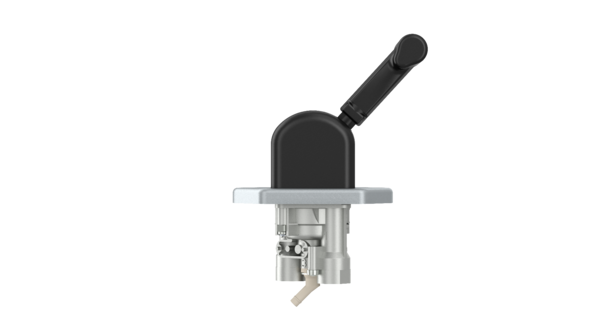

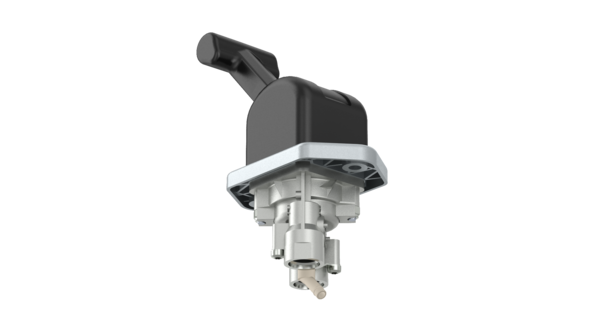

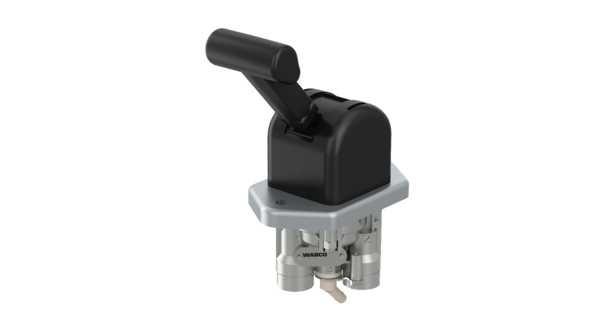

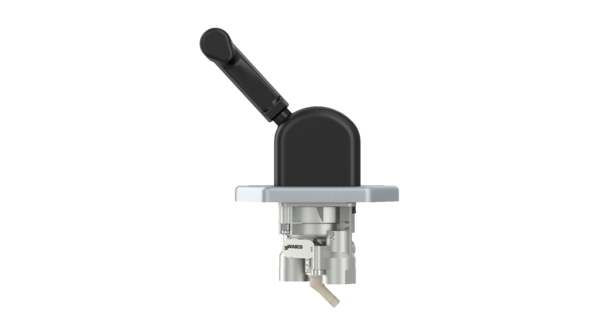

Hand Brake Valve, for trailer control
Part Number: 9617234290
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Actuation angle | 73° |
| Calculated Volume (dm³) | 0 |
| Color | Black/Black |
| Distance between holes | 80 mm |
| Exhaust | Hose nozzle Ø 6.0 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 7 mm |
| Port thread 1 | M16 x 1.5 JED – 388 |
| Port thread 21 | M16 x 1.5 JED – 388 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875297925 |
| UPC | 193133371380 |
| Weight (kg) | 0.545 |
| Weight (lb) | 1.2015 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FOTON | 1419335300001 |
| FOTON | 1612135600091 |
| HYUNDAI | 59710 7R500 |
| RENAULT | 5000452904 |
| SHAANXI | DZ93189360062 |
