Description

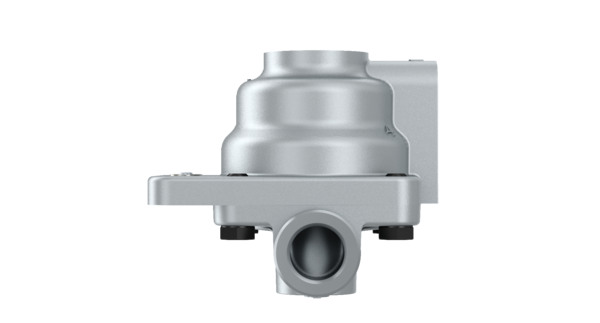

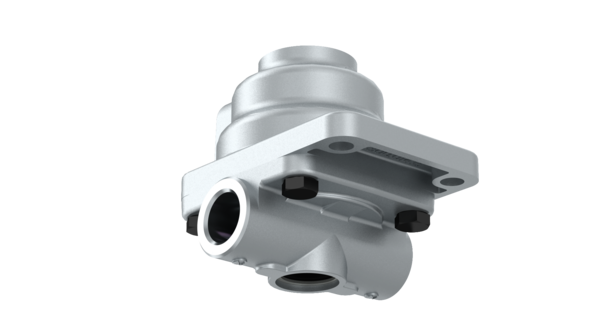

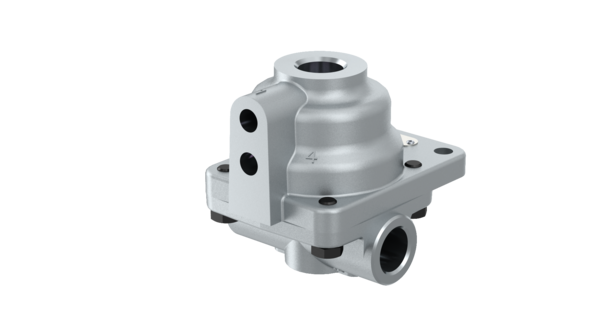

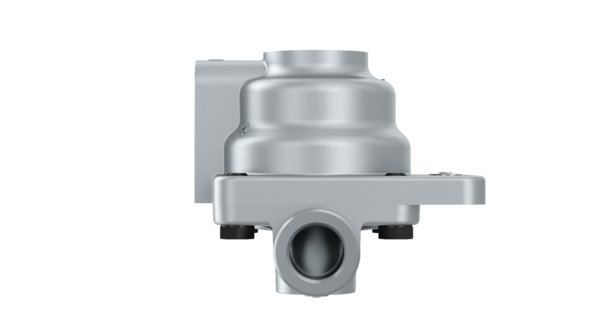

Empty Load Valve
Part Number: 4733000050
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 2.8 bar |
| Calculated Volume (dm³) | 2.609 |
| Distance between bolts | 60 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 9 mm |
| Port thread 1 | M22 x 1.5 / M12 x 1.5 |
| Port thread 2 | 2x M22 x 1.5 |
| Port thread 4 | M12x1.5 |
| Product category | Device |
| Regulating ratio | 1.35:1 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875221357 |
| Size (mm x mm x mm) | 157 x 134 x 124 |
| UPC | 193133313427 |
| Weight (kg) | 0.871 |
| Weight (lb) | 1.9202 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0004312013 |
| IVECO | 02526898 |
| IVECO | 24664917 |
| IVECO | 500438781 |
| LIEBHERR | 5029246 |
| LIEBHERR | 502924614 |
| MAN | 99100360489 |
| MERCEDES-BENZ | 0004312013 |
| MERCEDES-BENZ | 0004315813 |
| MERCEDES-BENZ | A0004312013 |
| RENAULT | 0024664917 |
| RENAULT | 24664917 |
| RENAULT | 5000946806 |
| STEYR | 99100360489 |
