Description

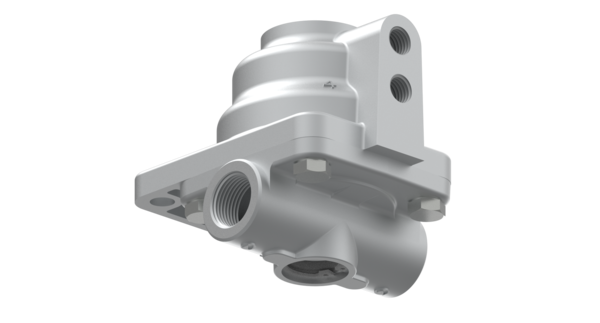

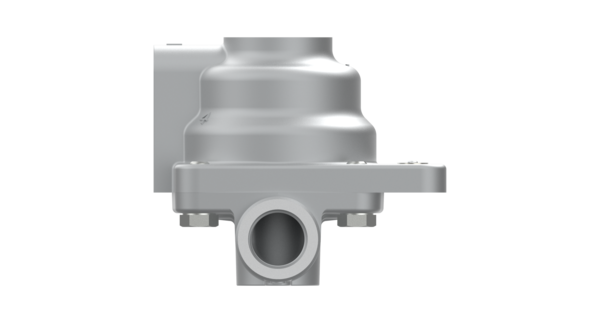

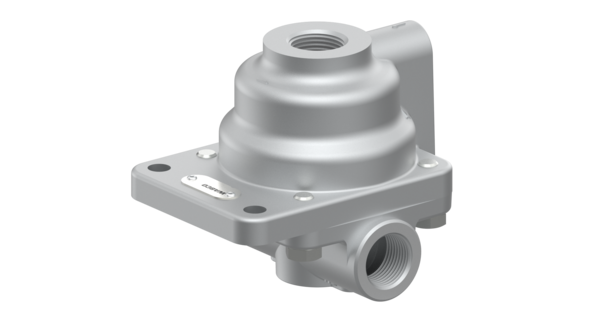

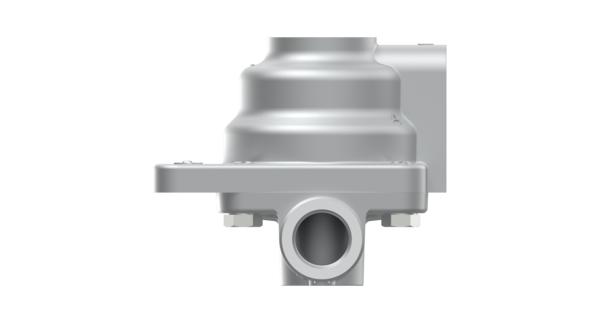

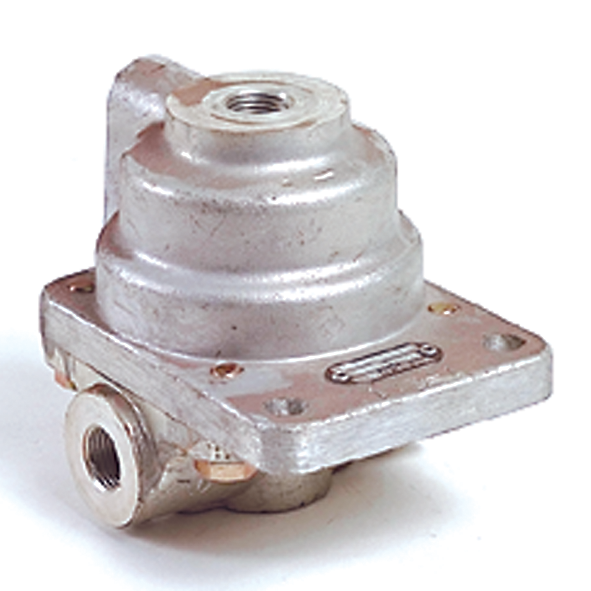

Empty Load Valve
Part Number: 4733000030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 1.5 bar |
| Calculated Volume (dm³) | 2.725 |
| Distance between bolts | 60 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 9 mm |
| Port thread 1 | M22 x 1.5 / M12 x 1.5 |
| Port thread 2 | 2x M22 x 1.5 |
| Port thread 4 | M12x1.5 |
| Product category | Device |
| Regulating ratio | 2:1 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875221388 |
| Size (mm x mm x mm) | 164 x 134 x 124 |
| UPC | 193133313274 |
| Weight (kg) | 0.775 |
| Weight (lb) | 1.709 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 532987 |
| DAF | 1505389 |
| IVECO | 08122056 |
| LIEBHERR | 502925308 |
| LIEBHERR | 502925314 |
| MAN | 88521806204 |
| MAN | 99100360085 |
| MERCEDES-BENZ | 0004311913 |
| NEOPLAN | 1102471545901 |
| PACCAR | 1505389 |
| RENAULT | 0024664914 |
| RENAULT | 24664914 |
| SCANIA | 361299 |
| STEYR | 99100360085 |
| VAN HOOL | 637206170 |
