Description

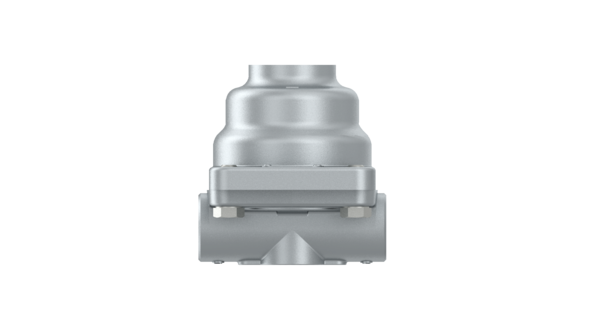

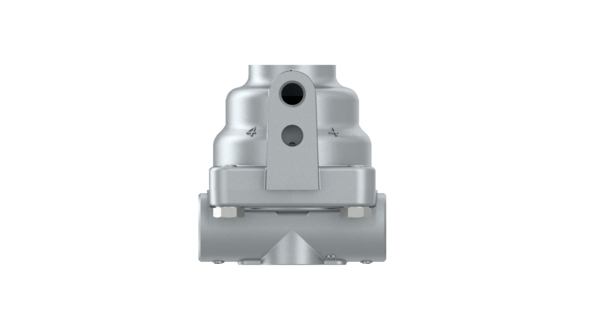

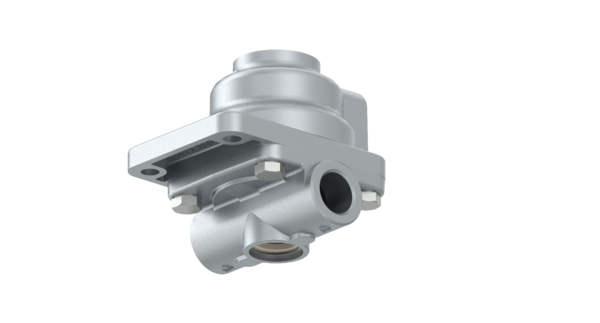

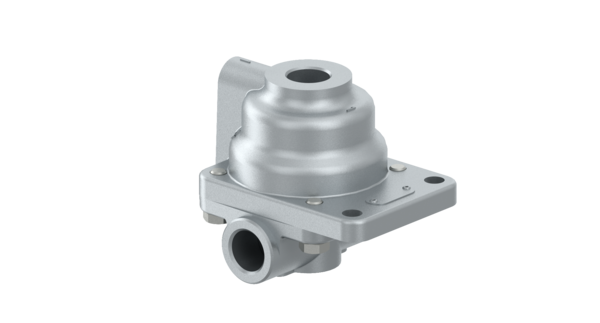

Empty Load Valve
Part Number: 4733000060
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 2.8 bar |
| Calculated Volume (dm³) | 1.378 |
| Distance between bolts | 60 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 9 mm |
| Port thread 1 | M22 x 1.5 / M12 x 1.5 |
| Port thread 2 | 2x M22 x 1.5 |
| Port thread 4 | M12x1.5 |
| Product category | Device |
| Regulating ratio | 1.15:1 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875221333 |
| Size (mm x mm x mm) | 125 x 106 x 104 |
| UPC | 193133444169 |
| Weight (kg) | 0.796 |
| Weight (lb) | 1.7549 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518924 |
| IVECO | 00101748 |
| IVECO | 101748 |
| KENWORTH | S4733000060 |
| LIEBHERR | 5029251 |
| LIEBHERR | 502925108 |
| MACK | 6300-4733000060 |
| MERITOR | S4733000060 |
| PETERBILT | S4733000060 |
| RENAULT | 0024551079 |
| RENAULT | 0024664920 |
| RENAULT | 24551079 |
| RENAULT | 24664920 |
| VOLVO | WAB4733000060 |
