Description

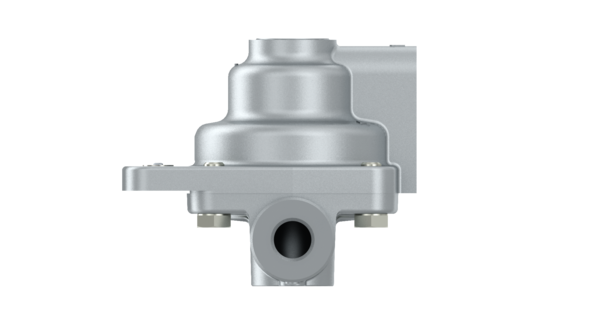

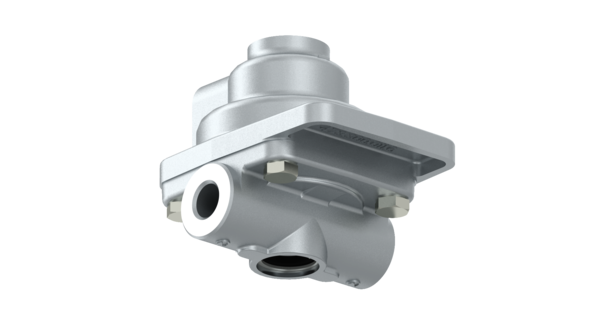

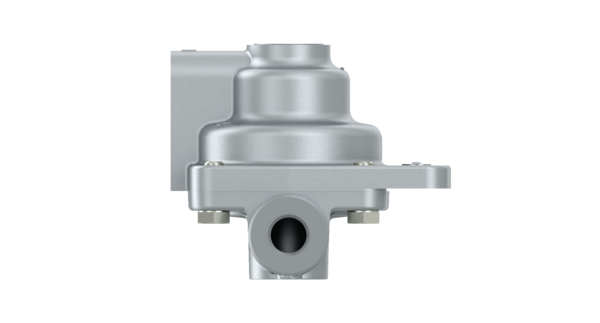

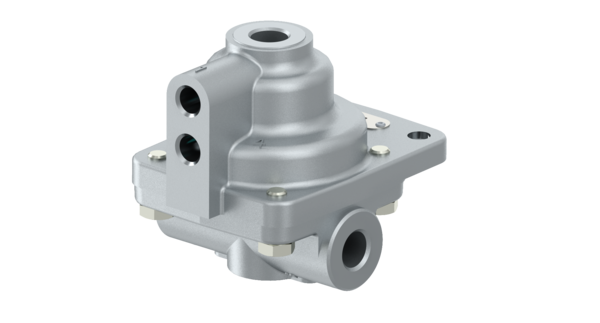

Empty Load Valve
Part Number: 4733000120
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Break point | 0.8 bar |
| Calculated Volume (dm³) | 1.3413 |
| Distance between bolts | 60 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2x Ø 9 mm |
| Port thread 1 | M16 x 1.5 / M12 x 1.5 |
| Port thread 2 | 2x M16 x 1.5 |
| Port thread 4 | M12x1.5 |
| Product category | Device |
| Regulating ratio | 2.7:1 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875221371 |
| Size (mm x mm x mm) | 106 x 111 x 114 |
| Weight (kg) | 0.741 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 0398475 |
| EVOBUS | A0004313113 |
| LANGENDORF | 1111658 |
| LIEBHERR | 502655708 |
| MERCEDES-BENZ | 0004313113 |
| MERCEDES-BENZ | A0004313113 |
| VDL | 20223349 |
