Description

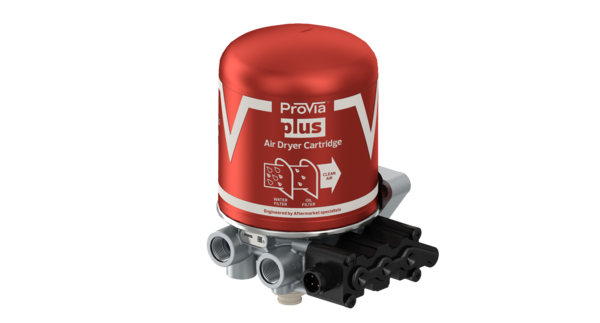

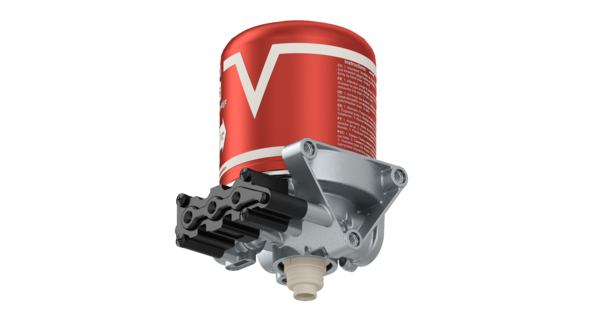

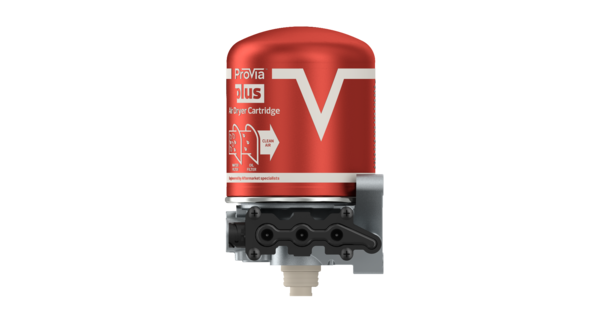

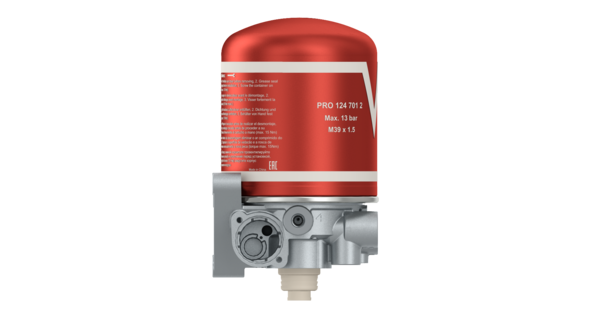

Electrically Controlled Air Dryer
Part Number: PRO1224000
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Calculated Volume (dm³) | 12.35 |
| Cartridge type | Air System Protector M39 |
| Heating system | Could be ordered with PRO4009202 |
| Max. operating pressure | 13.0 bar |
| Port thread 1 | M22 x 1.5 JED-388-4 |
| Port thread 12 | M16 x 1.5 JED-152 |
| Port thread 21 | M22 x 1.5 JED-388-4 |
| Port thread 4/23 | M12 x 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Silencer | Snap On Contour (4324070120) |
| Solenoid connection | Bayonet DIN 72585 A2-4.1-Sn/K1 |
| Technical specification | AM specification |
| Temperature range | -40°C to +65°C |
| Unloader | No |
| Voltage | 24 V |
| GTIN | 04057877042622 |
| Size (mm x mm x mm) | 280 x 210 x 210 |
| UPC | 193134008803 |
| Weight (kg) | 4.296 |
| Weight (lb) | 9.471 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 905341 |
| DAF | 882965 |
| DAF | 883259 |
| PACCAR | 905341 |
| PACCAR | 883259 |
| SCANIA | 1932701 |
| UD TRUCKS | 47500NA04B |
| VDL | 30157175 |
| VOLVO | 21398254 |
| VOLVO | 20873849 |
| VOLVO | 20700794 |
| VOLVO | 21620170 |
| VOLVO | 21480092 |
| VOLVO | 20884103 |
| VOLVO | 20466522 |
| VOLVO | 21480094 |
| VOLVO | 21620172 |
