Description

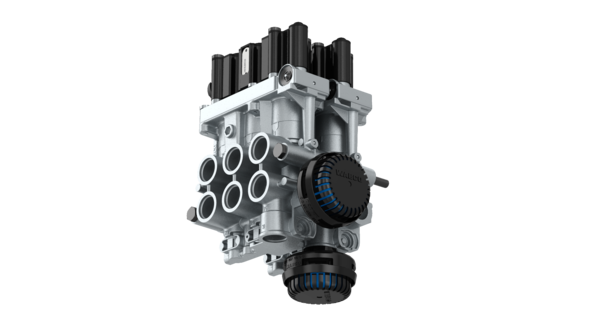

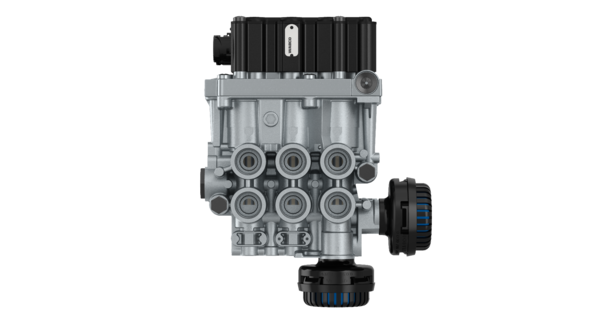

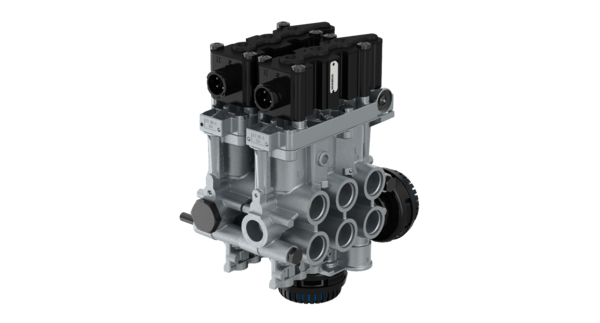

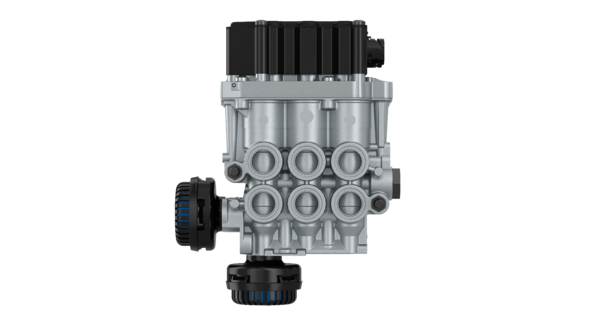

ECAS Solenoid Valve
Part Number: 4729051140
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Rear axle |
| Calculated Volume (dm³) | 7.2947 |
| Comments | ECAS solenoid block for drive axle+lift axle 2 silencers and port 26 closed mounting position: solenoid connections on top |
| Electrical connection | Bayonet DIN 72585-A1-4.1-Sn/K2, Bayonet DIN 72585-A1-4.2-Sn/K2 |
| Max. operating pressure | 20.0 bar |
| Mounting | 2 x M8 |
| Multi nominal diameter (from port 1 to x) | 10.0 / 7.0 / 8.7 / 0.6 mm |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M22 x 1.5 JED – 388 |
| Port thread 23 | M22 x 1.5 JED – 388 |
| Port thread 24 | M22 x 1.5 JED – 388 |
| Port thread 25 | M22 x 1.5 JED-388 |
| Port thread 26 | Closed |
| Port thread 3 | 2 x Silencer 432 407 060 0 |
| Port threads | M22 x 1.5 JED-388 |
| Product category | Device |
| Protection class | IP 6K9K |
| Rated current | 340 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 7895851059450 |
| Size (mm x mm x mm) | 256 x 205 x 139 |
| UPC | 193133312833 |
| Weight (kg) | 4.248 |
| Weight (lb) | 9.3652 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518110 |
| DOLL | 7054086 |
| FELDBINDER | 0998495 |
| FELDBINDER | 8880 |
| FRUEHAUF | A3A4231 |
| GOLDHOFER | 166627 |
| GUERRA | 84862 |
| KRONE | 5814363 |
| KRONE | 58143630 |
| KRONE | 505814363 |
| KÄSSBOHRER | 21145210018 |
| KÖGEL | 337321 |
| LANGENDORF | 1111651 |
| LOHR | A05100999 |
| NIPPON TREX | 910015-00007 |
| NOOTEBOOM | 15861 |
| ORTHAUS | 495174 |
| OTOKAR | AIF1547 |
| SCANIA | 1935902 |
| SCHMITZ CARGOBULL | 052703 |
| SCHMITZ CARGOBULL | 054435 |
| SCHMITZ CARGOBULL | 54435 |
| SCHMITZ CARGOBULL | INS0330016 |
| SCHWARZMÜLLER | 3568 |
| TIRSAN | 21150110030 |
| VOLVO | WA4729051140 |
