Description

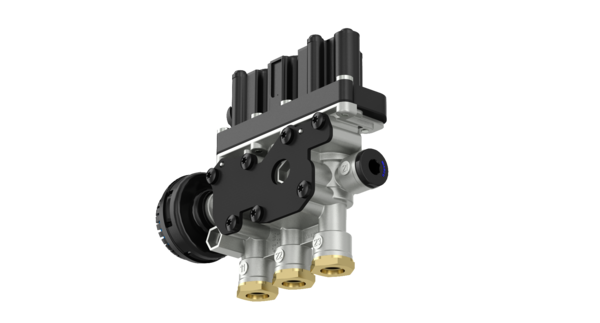

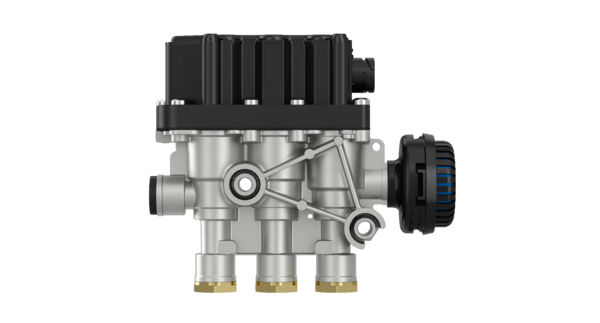

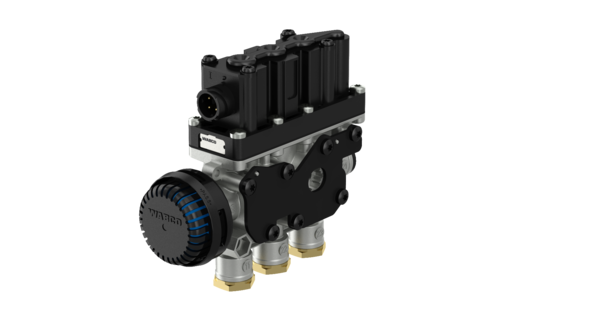

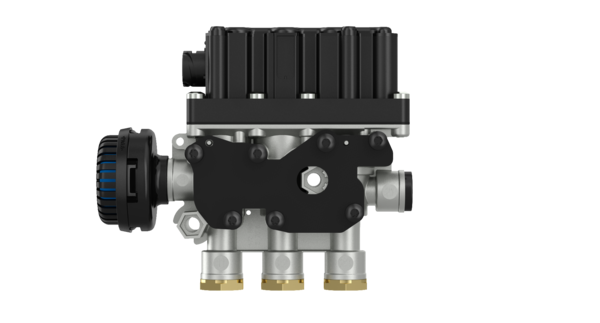

ECAS Solenoid Valve
Part Number: 4728800740
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 2.572 |
| Electrical connection | Bayonet DIN 72585-A1-4.1-Sn/K2 |
| Max. operating pressure | 20.0 bar |
| Multi nominal diameter (from port 1 to x) | 9.8 / 7.0 mm |
| Port thread 11 | M16 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 3 | Silencer 432 407 060 0 |
| Product category | Device |
| Protection class | IP 6K9K |
| Rated current | 620 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 12 V |
| GTIN | 04057875220428 |
| Size (mm x mm x mm) | 210 x 70 x 175 |
| UPC | 193133312611 |
| Weight (kg) | 2.45 |
| Weight (lb) | 5.401 |
