Description

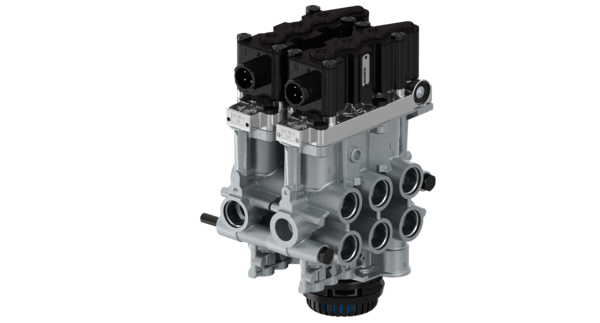

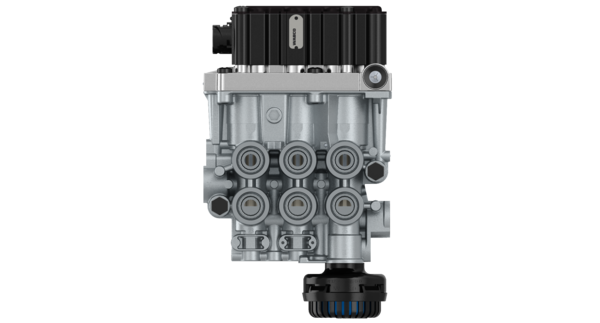

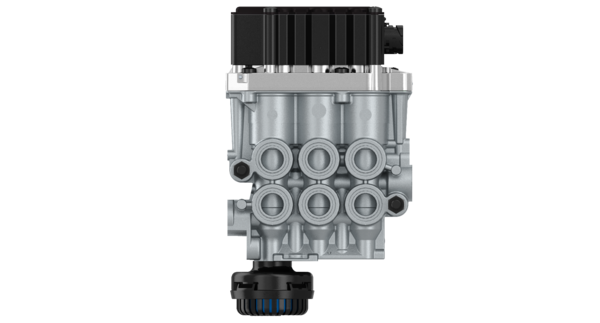

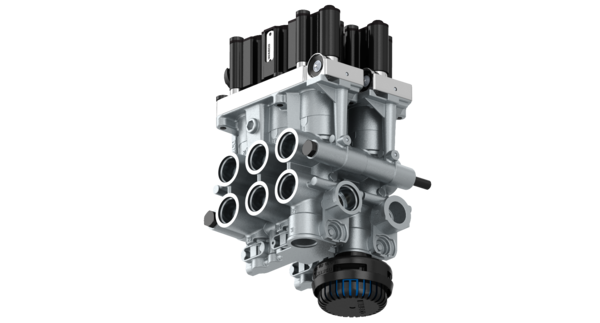

ECAS Solenoid Valve
Part Number: 4729051110
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Rear axle |
| Calculated Volume (dm³) | 5.1992 |
| Comments | ECAS solenoid block for drive axle+lift axle mounting position: solenoid connections on top |
| Electrical connection | Bayonet DIN 72585-A1-4.1-Sn/K2, Bayonet DIN 72585-A1-4.2-Sn/K2 |
| Max. operating pressure | 20.0 bar |
| Mounting | 2 x M8 |
| Multi nominal diameter (from port 1 to x) | 10.0 / 7.0 / 8.7 mm |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M22 x 1.5 JED – 388 |
| Port thread 23 | M22 x 1.5 JED – 388 |
| Port thread 24 | M22 x 1.5 JED – 388 |
| Port thread 25 | M22 x 1.5 JED-388 |
| Port thread 26 | M22 x 1.5 JED-388 |
| Port thread 3 | Silencer 432 407 060 0 |
| Port threads | M22 x 1.5 JED-388 |
| Product category | Device |
| Protection class | IP 6K9K |
| Rated current | 320 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 7895851051027 |
| Size (mm x mm x mm) | 253 x 150 x 137 |
| UPC | 193133444084 |
| Weight (kg) | 4.18 |
| Weight (lb) | 9.2153 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1305452 |
| ERF | 81259056147 |
| EVOBUS | A0003276825 |
| FAYMONVILLE | 39326 |
| FELDBINDER | 066526 |
| FORD | 4C463038BA |
| KENWORTH | S472-905-111-0 |
| KODAIRA | VS70000158 |
| KÖGEL | 337816 |
| LANGENDORF | 1111650 |
| LEYLAND DAF | 1305452 |
| LOHR | A05021233 |
| MACK | 6300-4729051110 |
| MAN | 81259026147 |
| MAN | 81259029147 |
| MAN | 81259056147 |
| MAN | 81.25902-6147 |
| MERCEDES-BENZ | 0003276825 |
| MERCEDES-BENZ | A0003276825 |
| MERITOR | S4729051110 |
| NEOPLAN | 81259026147 |
| ORTHAUS | 495158 |
| PETERBILT | S472-905-111-0 |
| SCANIA | 1453164 |
| SCANIA | 1934999 |
| SCHMITZ CARGOBULL | INS0330007 |
| SCHWARZMÜLLER | 94155 |
| VDL | 1196822 |
| VOLVO | WA4729051110 |
| VOLVO | WAB4729051110 |
