Description

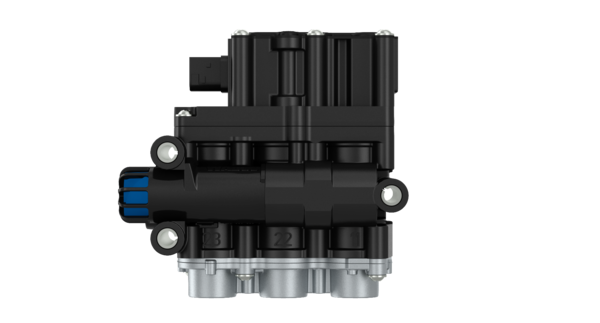

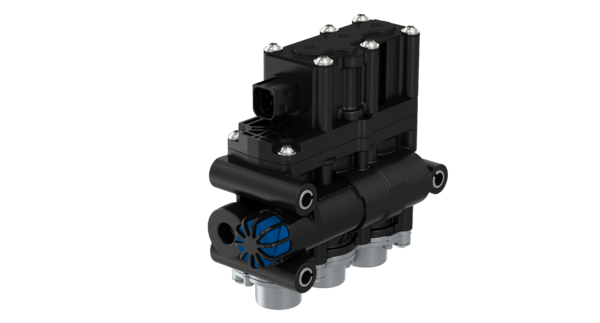

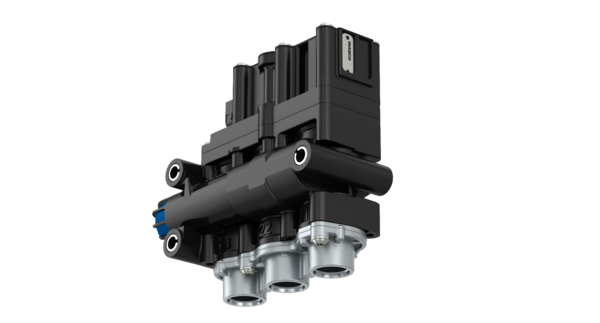

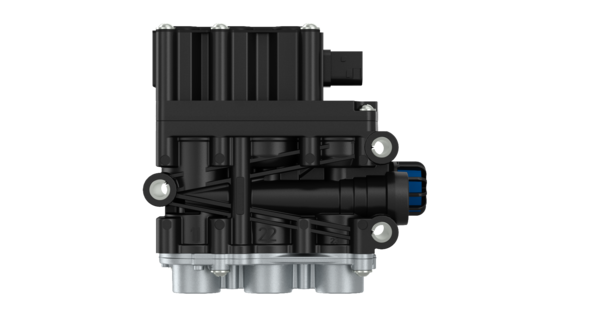

ECAS Solenoid Valve
Part Number: 4728900220
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.95 |
| Cooling | Air |
| Electrical connection | Tyco HDSCS 4 x 2.8 coding A |
| Max. operating pressure | 22.0 bar |
| Mounting | 3 x Ø 8 mm |
| Multi nominal diameter (from port 1 to x) | 11.3 / 8.0 mm |
| Port thread 11 | M22 x 1.5 JED – 388-4 |
| Port thread 22 | M22 x 1.5 JED – 388-4 |
| Port thread 23 | M22 x 1.5 JED – 388-4 |
| Port thread 3 | Integrated silencer |
| Product category | Device |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 320 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 04057875220503 |
| Size (mm x mm x mm) | 168 x 159 x 73 |
| UPC | 193133406570 |
| Weight (kg) | 1.489 |
| Weight (lb) | 3.2827 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 2020258 |
| DAIMLER | A0013271425 |
| FUSO (MITSUBISHI) | MX918523 |
| HINO | S40C0E0130 |
| SCANIA | 1889795 |
| UD TRUCKS | 2633501Z1B |
