Description

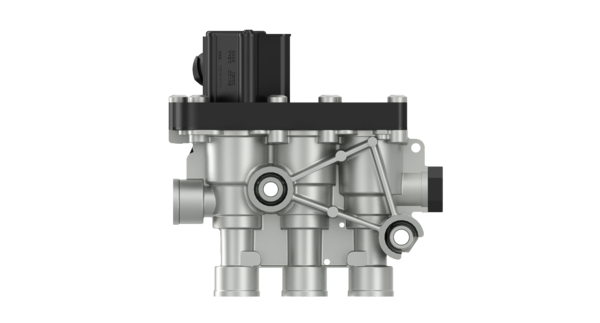

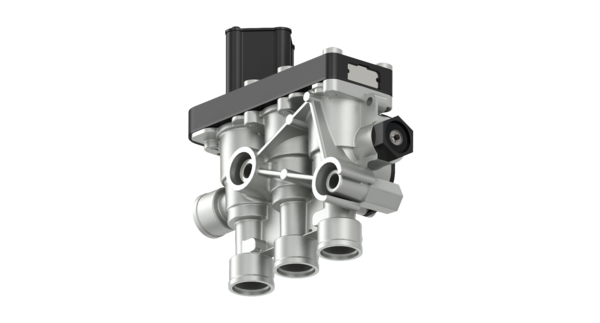

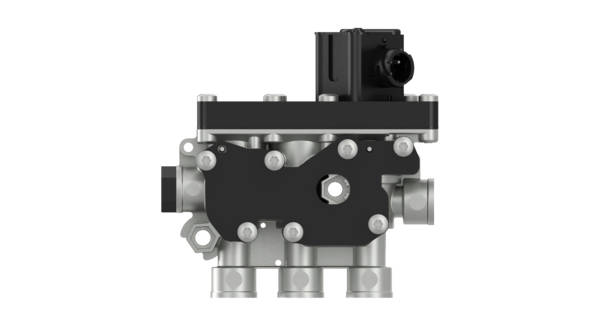

ECAS Solenoid Valve
Part Number: 4728800200
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.4876 |
| Electrical connection | Bayonet DIN 72585-A1-3.6-Sn/K2 |
| Max. operating pressure | 20.0 bar |
| Mounting | 2 x Ø 9 mm |
| Multi nominal diameter (from port 1 to x) | 9.8 / 7.0 / 1.0 mm |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M22 x 1.5 JED – 388 |
| Port thread 23 | M22 x 1.5 JED – 388 |
| Port thread 3 | Closed – M22 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Protection class | IP 6K9K |
| Rated current | 340 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 7895851067066 |
| Size (mm x mm x mm) | 154 x 161 x 60 |
| UPC | 193133312598 |
| Weight (kg) | 1.823 |
| Weight (lb) | 4.019 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DOLL | 7093146 |
| GOLDHOFER | 168923 |
| HYUNDAI | 558018R900 |
| HYUNDAI | 55801 8R900 |
| IRISBUS | 41211011 |
| IVECO | 41211011 |
| KIA | 558018R900 |
| KRONE | 505821128 |
| KRONE | 5813774 |
| KRONE | 5813774/1 |
| KRONE | 58137741 |
| MAN | 81259026144 |
| MAN | 81259029144 |
| RENAULT | 5010457151 |
| RENAULT | 4729000540 |
| RENAULT | 5010143097 |
| RENAULT | 20734168 |
| VOLVO | 20734168 |
| VOLVO | 5010457151 |
