Description

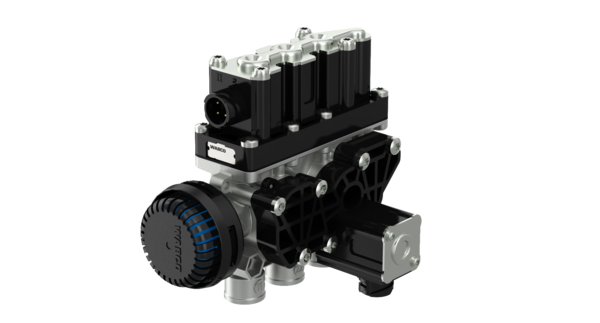

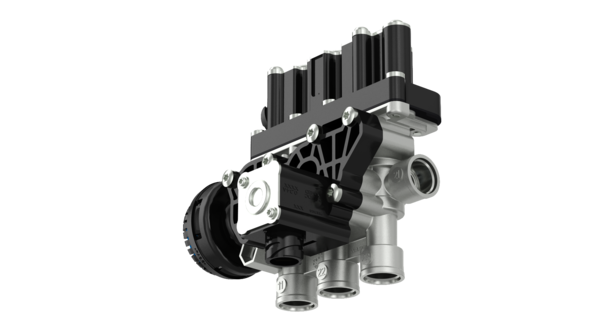

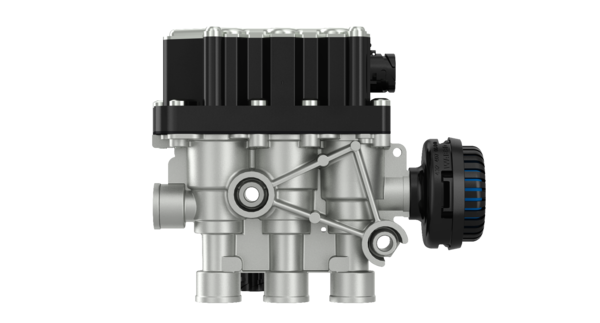

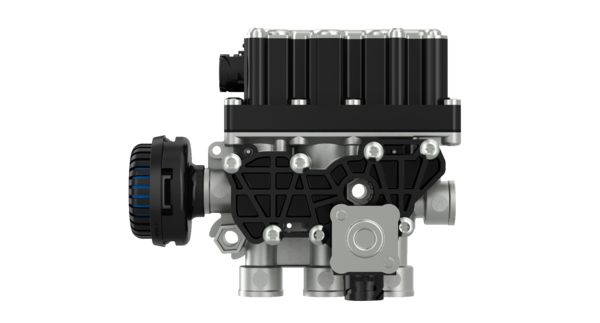

ECAS Solenoid Valve
Part Number: 4728800610
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.8226 |
| Comments | Valve 1 = 0.32 A, Valve 2 = 0.34 A |
| Electrical connection | Bayonet DIN 72585-A1-4.2-Sn/K2, Bayonet DIN 72585-A1-3.6-Sn/K2 |
| Max. operating pressure | 20.0 bar |
| Mounting | 2 x Ø 9 mm |
| Multi nominal diameter (from port 1 to x) | 9.8 / 7.0 / 1.4 / 0.6 mm |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M22 x 1.5 JED – 388 |
| Port thread 23 | M22 x 1.5 JED – 388 |
| Port thread 3 | Silencer 432 407 060 0 |
| Product category | Device |
| Protection class | IP 6K9K |
| Rated current | 320 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 7895851048423 |
| Size (mm x mm x mm) | 166 x 202 x 114 |
| UPC | 193133312369 |
| Weight (kg) | 2.396 |
| Weight (lb) | 5.2823 |
OEM Cross References
| Brand | Reference No |
|---|---|
| HYUNDAI | 558018KZZ0 |
| HYUNDAI | 55801 8KZZ0 |
| HYUNDAI | 58260 UA641 |
| KRONE | 5813774 |
| KRONE | 5813774/1 |
| KRONE | 58137741 |
| MAN | 81259026230 |
| MAN | 81259026144 |
| MAN | 81259029144 |
| MAN | 81.25902-6230 |
| NEOPLAN | 81259026230 |
| RENAULT | 4729000540 |
| RENAULT | 5010143097 |
