Description

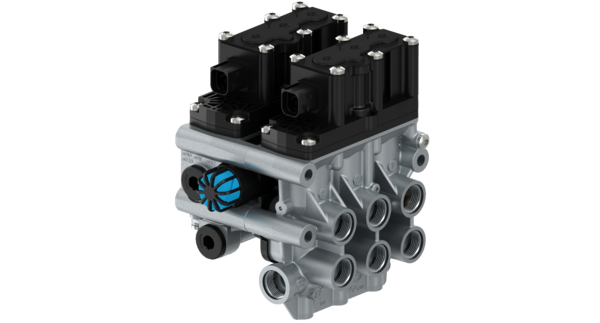

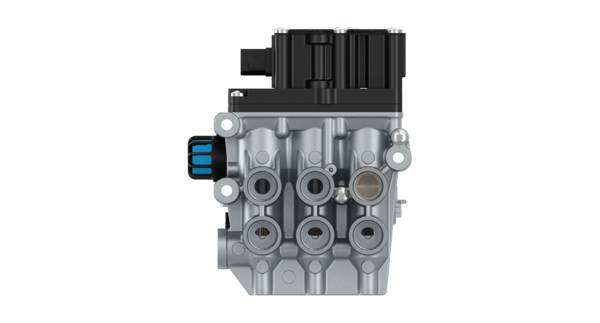

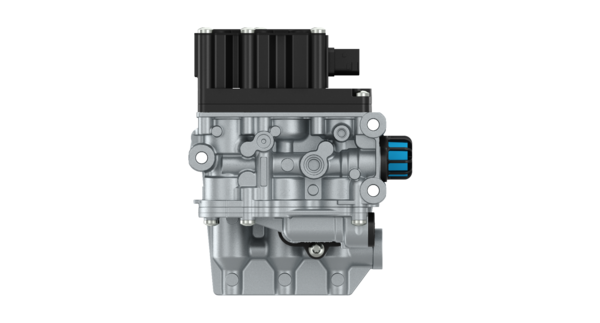

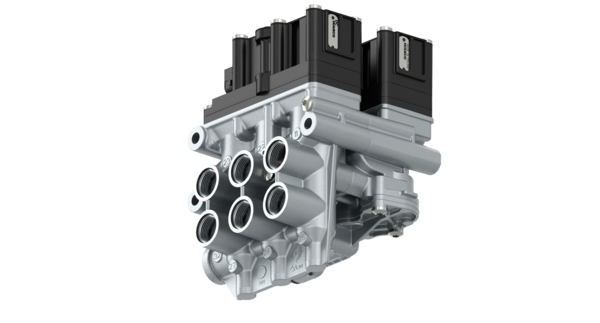

ECAS Solenoid Valve
Part Number: 4728901130
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.8626 |
| Electrical connection | 2x Tyco HDSCS 4 x 2.8 coding A & coding B |
| Max. operating pressure | 22.0 bar |
| Mounting | 3x Ø 8 mm |
| Multi nominal diameter (from port 1 to x) | 11.3 / 8.0 / 11.5 mm |
| Port thread 11 | M22 x 1.5 JED – 388-4 |
| Port thread 22 | M22 x 1.5 JED – 388-4 |
| Port thread 23 | M22 x 1.5 JED – 388-4 |
| Port thread 25 | M22 x 1.5 JED-388-4 |
| Port thread 26 | M22 x 1.5 JED-388-4 |
| Port thread 27 | M22 x 1.5 JED-388-4 |
| Port thread 3 | Integrated silencer |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K8 |
| Rated current | 320 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 04057875220640 |
| Size (mm x mm x mm) | 207 x 169 x 139 |
| UPC | 193133312819 |
| Weight (kg) | 3.507 |
| Weight (lb) | 7.7316 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAIMLER | A0013271225 |
| MERCEDES-BENZ | A0013271225 |
