Description

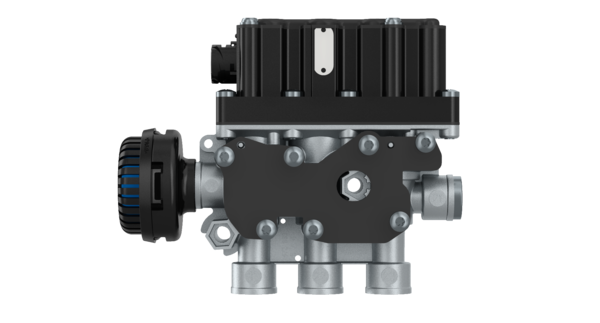

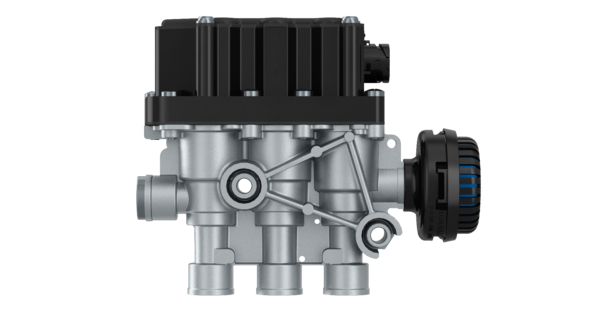

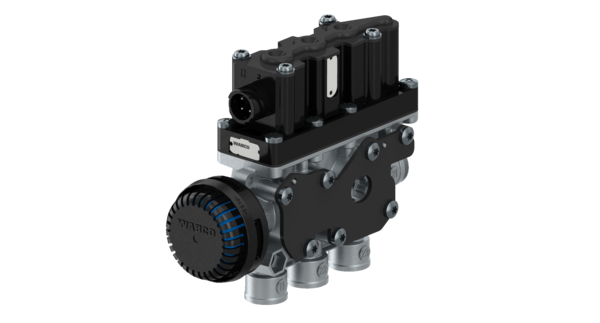

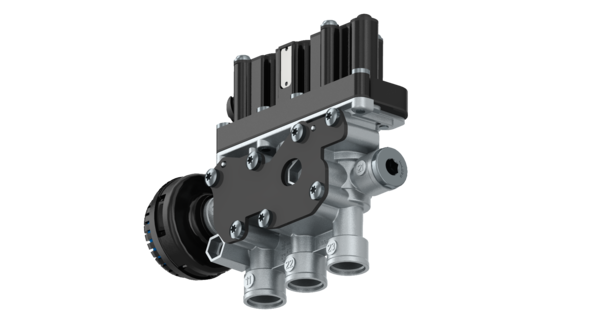

ECAS Solenoid Valve
Part Number: 4728800300
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 2.499 |
| Electrical connection | Bayonet DIN 72585-A1-4.2-Sn/K2 |
| Max. operating pressure | 20.0 bar |
| Mounting | 2 x Ø 9 mm |
| Multi nominal diameter (from port 1 to x) | 9.8 / 7.0 / 0.6 mm |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M22 x 1.5 JED – 388 |
| Port thread 23 | M22 x 1.5 JED – 388 |
| Port thread 3 | Silencer 432 407 060 0 |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K6K |
| Rated current | 320 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 7895851074132 |
| Size (mm x mm x mm) | 167 x 205 x 73 |
| UPC | 193133443995 |
| Weight (kg) | 2.203 |
| Weight (lb) | 4.857 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ASHOK LEYLAND | 442562004 |
| DAF | 1343255 |
| DOLL | 7088657 |
| FAW | 294160555A |
| FAW | 2941605-55A |
| FELDBINDER | 1042813 |
| FRUEHAUF | GB52000280 |
| FUSO (MITSUBISHI) | MK471496 |
| HAMANA | GB52000280 |
| IRISBUS | 41211012 |
| ISUZU | 8983319160 |
| IVECO | 41211012 |
| KENWORTH | S472-880-030-0 |
| KING LONG | 29Y1145020 |
| KRONE | 505820672/0 |
| KRONE | 5058206720 |
| KÄSSBOHRER | 21145210032 |
| KÖGEL | 339077 |
| LEYLAND DAF | ABRB810 |
| LEYLAND DAF | 1343255 |
| LOHR | F00295081 |
| MACK | 6300-4728800300 |
| MAN | 81259026238 |
| MAN | 81259026145 |
| MERITOR | S4728800300 |
| NEOPLAN | 81259026238 |
| NOOTEBOOM | 3478624 |
| NOOTEBOOM | 16062 |
| PETERBILT | S472-880-030-0 |
| RENAULT | 5010457434 |
| RENAULT | 20707214 |
| SCANIA | 1934984 |
| SCHMITZ CARGOBULL | 1066451 |
| SCHWARZMÜLLER | 93651 |
| TIRSAN | 21145210032 |
| VOLVO | 20707214 |
| VOLVO | WA4728800300 |
| VOLVO | 5010457434 |
| VOLVO | WAB4728800300 |
