Description

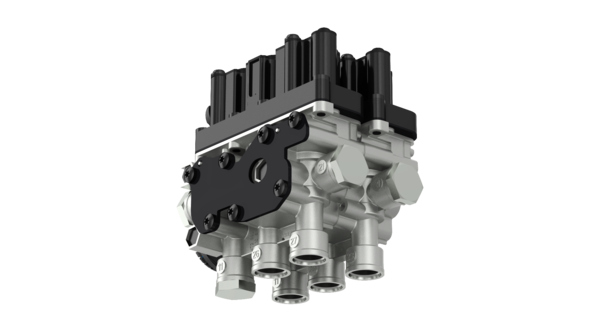

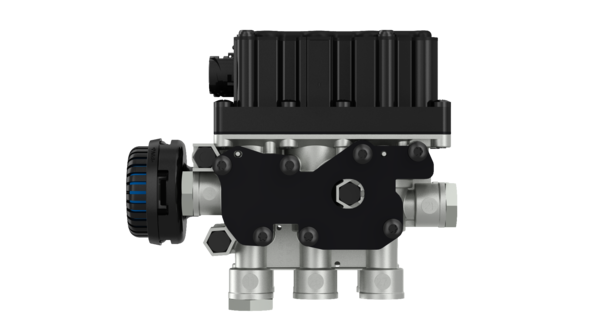

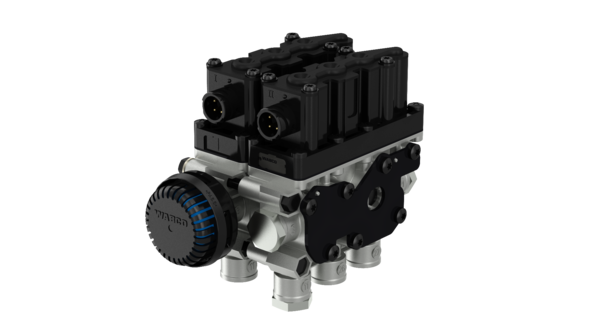

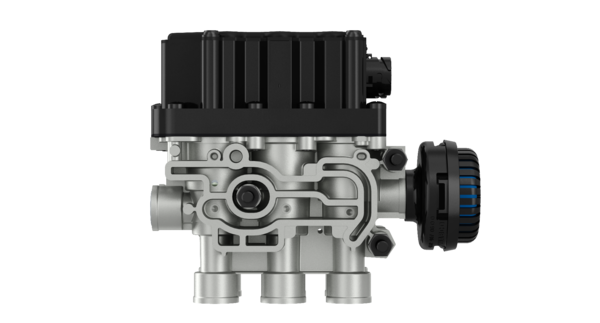

ECAS Solenoid Valve
Part Number: 4728801000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 4.8777 |
| Electrical connection | Bayonet DIN 72585-A2-4.1-Sn/K2, Bayonet DIN 72585-A1-4.2-Sn/K2 |
| Max. operating pressure | 20.0 bar |
| Mounting | 2 x M8 |
| Multi nominal diameter (from port 1 to x) | 9.8 / 7.0 mm |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M22 x 1.5 JED – 388 |
| Port thread 23 | M22 x 1.5 JED – 388 |
| Port thread 26 | M22 x 1.5 JED-388 |
| Port thread 27 | M22 x 1.5 JED-388 |
| Port thread 3 | Silencer 432 407 060 0 |
| Product category | Device |
| Protection class | IP 6K9K |
| Rated current | 320 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 7895851074149 |
| Size (mm x mm x mm) | 207 x 172 x 137 |
| UPC | 193133312178 |
| Weight (kg) | 4.976 |
| Weight (lb) | 10.97 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 617569 |
| DAF | 1152509 |
| EVOBUS | A0013270225 |
| FUSO (MITSUBISHI) | MK471498 |
| IRISBUS | 41211015 |
| IRIZAR | 8015531 |
| IVECO | 41211015 |
| SCANIA | 1934985 |
| VDL | 41152509 |
