Description

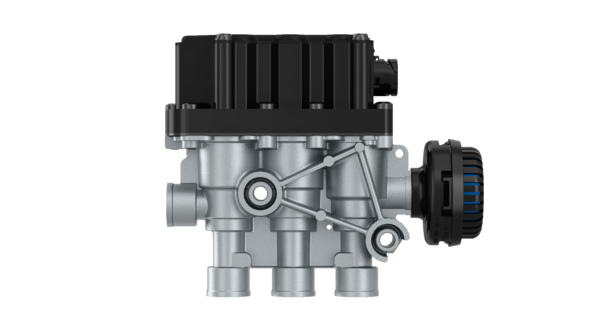

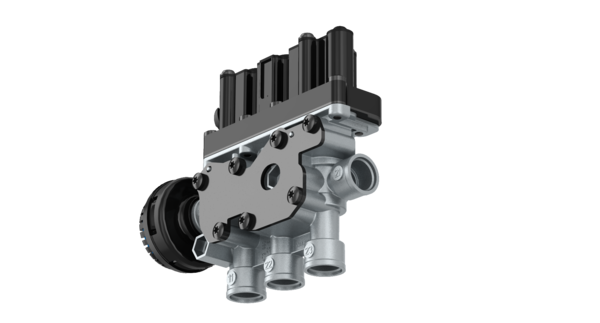

ECAS Solenoid Valve
Part Number: 4728800000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 2.4504 |
| Electrical connection | Bayonet DIN 72585-A1-4.1-Sn/K2 |
| Max. operating pressure | 20.0 bar |
| Mounting | 2 x Ø 9 mm |
| Multi nominal diameter (from port 1 to x) | 9.8 / 7.0 mm |
| Port thread 11 | M22 x 1.5 JED – 388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M22 x 1.5 JED – 388 |
| Port thread 23 | M22 x 1.5 JED – 388 |
| Port thread 3 | Silencer 432 407 060 0 |
| Product category | Device |
| Protection class | IP 6K9K |
| Rated current | 320 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 7895851048416 |
| Size (mm x mm x mm) | 201 x 167 x 73 |
| UPC | 193133443940 |
| Weight (kg) | 2.287 |
| Weight (lb) | 5.042 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0003278525 |
| HYUNDAI | 558028KZZ0 |
| HYUNDAI | 55802 8KZZ0 |
| KENWORTH | S4728800000 |
| KIA | 558028KZZ0 |
| MERCEDES-BENZ | 0003278525 |
| MERCEDES-BENZ | A0003278525 |
| MERITOR | S4728800000 |
| PETERBILT | S4728800000 |
