Description

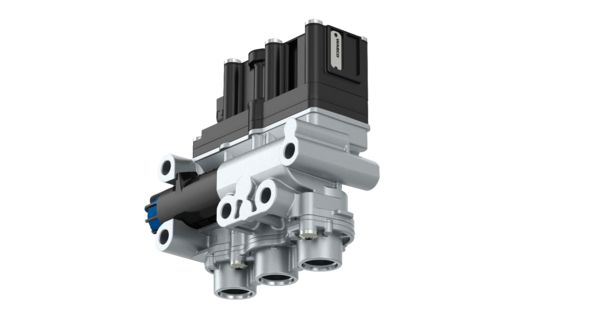

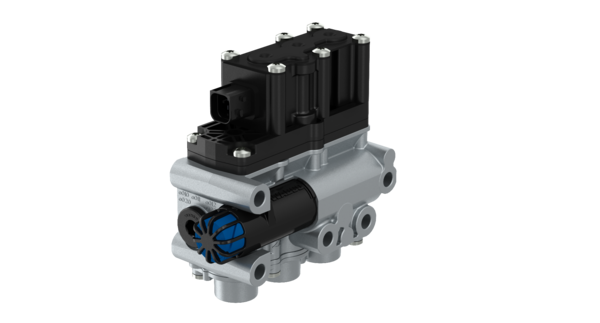

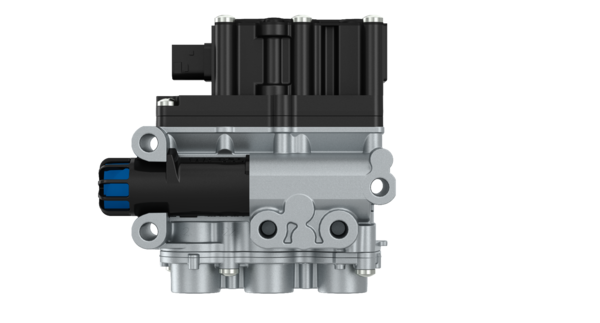

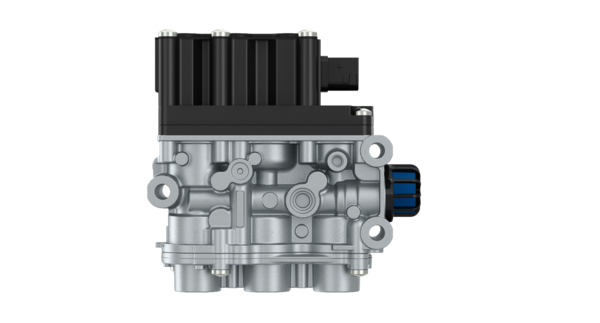

ECAS Solenoid Valve
Part Number: 4728900310
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.857 |
| Cooling | Air |
| Electrical connection | Tyco HDSCS 4 x 2.8 coding B |
| Max. operating pressure | 22.0 bar |
| Mounting | 3 x Ø 8 mm |
| Multi nominal diameter (from port 1 to x) | 11.3 / 8.0 / 0.6 mm |
| Port thread 11 | M22 x 1.5 JED – 388-4 |
| Port thread 22 | M22 x 1.5 JED – 388-4 |
| Port thread 23 | M22 x 1.5 JED – 388-4 |
| Port thread 3 | Integrated silencer |
| Product category | Device |
| Protection class | IP 6K9K, IP 6K8 |
| Rated current | 320 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 04057875220558 |
| Size (mm x mm x mm) | 169 x 157 x 70 |
| UPC | 193133312765 |
| Weight (kg) | 1.713 |
| Weight (lb) | 3.777 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1888014 |
| DAIMLER | A0013271025 |
