Description

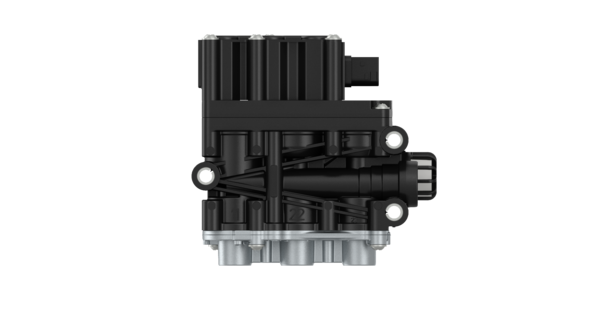

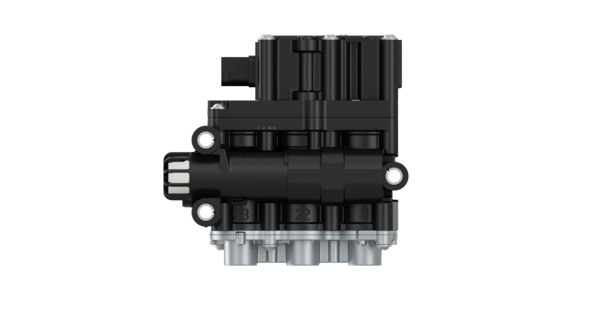

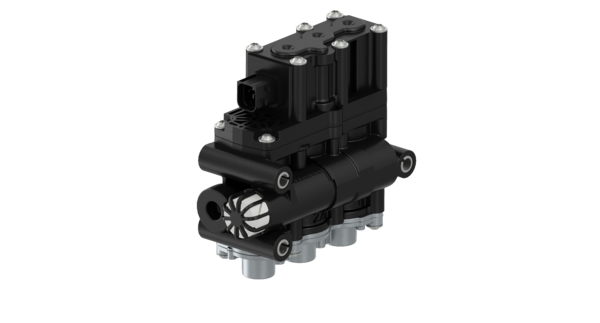

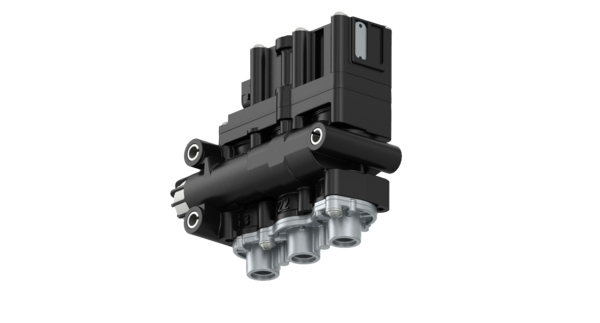

ECAS Solenoid Valve
Part Number: 4728900700
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 1.8928 |
| Electrical connection | Tyco HDSCS 4 x 2.8 coding A |
| Max. operating pressure | 22.0 bar |
| Mounting | 3 x Ø 8 mm |
| Multi nominal diameter (from port 1 to x) | 11.3 / 8.0 mm |
| Port thread 11 | M16 x 1.5 ISO-4039-2 |
| Port thread 22 | M16 x 1.5 ISO – 4039-2 |
| Port thread 23 | M16 x 1.5 ISO – 4039-2 |
| Port thread 3 | Integrated silencer |
| Product category | Device |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 625 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 12 V |
| GTIN | 04057875220626 |
| Size (mm x mm x mm) | 160 x 169 x 70 |
| UPC | 193133312192 |
| Weight (kg) | 1.443 |
| Weight (lb) | 3.1813 |
