Description

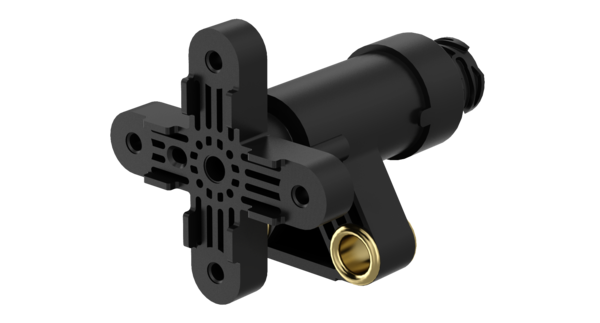

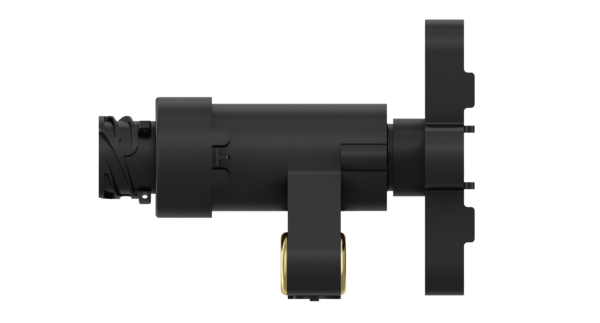

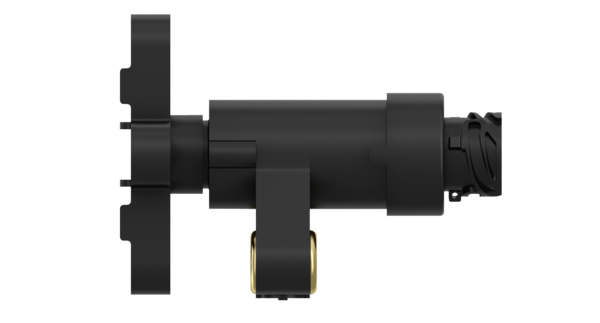

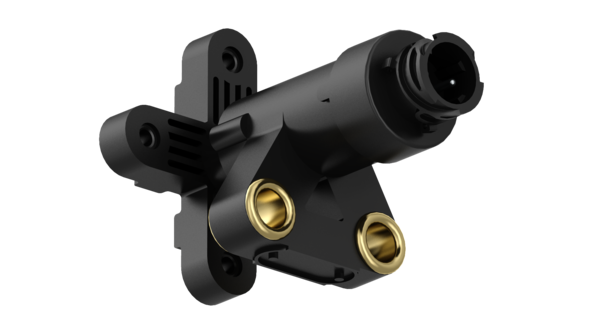

ECAS Height Sensor
Part Number: 4410501230
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.6784 |
| Comments | With lever |
| Distance between holes | 40 mm |
| Electrical connection | Bayonet DIN 72585-A1-2.1-Sn/K2 |
| Mounting | 2x Ø 10.9 mm |
| Operational range | ±50° |
| Product category | Device |
| Protection class | IP 6K9K |
| Rated current | 90 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Inductive |
| Type of lever | Cross lever |
| Voltage | 12 V |
| GTIN | 04057875183884 |
| Size (mm x mm x mm) | 106 x 80 x 80 |
| UPC | 193133281696 |
| Weight (kg) | 0.13 |
| Weight (lb) | 0.2866 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 81259370040 |
| NEOPLAN | 81259370040 |
