Description

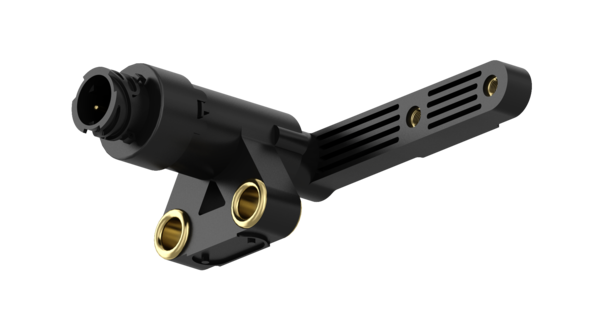

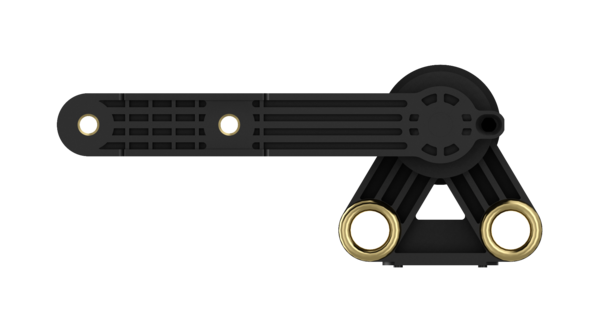

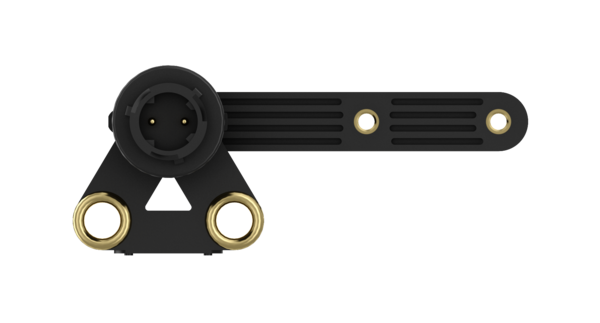

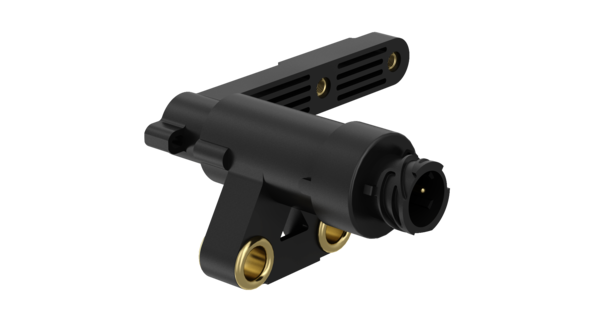

ECAS Height Sensor
Part Number: 4410501000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | TEBS E |
| Calculated Volume (dm³) | 0.8448 |
| Comments | With lever |
| Distance between holes | 40 mm |
| Electrical connection | Bayonet DIN 72585-A1-2.1-Sn/K2 |
| Length | 100 mm |
| Mounting | 2x Ø 10.9 mm |
| Operational range | ±50° |
| Product category | Device |
| Protection class | IP 6K9K |
| Rated current | 90 mA |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Inductive |
| Type of lever | Straight lever |
| Voltage | 12 V |
| GTIN | 7895851040373 |
| Size (mm x mm x mm) | 110 x 128 x 60 |
| UPC | 193133439042 |
| Weight (kg) | 0.126 |
| Weight (lb) | 0.27778 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 662172 |
| DAF | 1365935 |
| DOLL | 7119045 |
| FAYMONVILLE | 214004 |
| FREIGHTLINER | TDAS4410501000 |
| FUSO (MITSUBISHI) | ML220444 |
| GREAT DANE | 40500160 |
| GUERRA | 84864 |
| IRIZAR | 8015544 |
| KENWORTH | S441-050-100-0 |
| KODAIRA | VS70000255 |
| KRONE | 515005712 |
| KÄSSBOHRER | 21151103152 |
| KÖGEL | 6503143/0 |
| KÖGEL | 65031430 |
| LANGENDORF | 1273177 |
| LECITRAILER | 4501002 |
| LEYLAND DAF | ABRA506 |
| LEYLAND DAF | 1365935 |
| LOHR | A05101487 |
| MAC TRAILER | 24900025 |
| MAC TRAILER | 41002787 |
| MACK | S4410501000 |
| MACK | 6300-4410501000 |
| NIPPON SHARYO | A6000JC15902 |
| NIPPON TREX | 924301-00114 |
| NOOTEBOOM | 3478622 |
| OTOKAR | AIF2063 |
| PACCAR | 1365935 |
| PETERBILT | S441-050-100-0 |
| RENAULT | 5010422344 |
| RODOFORT | 51462 |
| SCANIA | 1934584 |
| SCHMITZ CARGOBULL | 1055349 |
| SCHWARZMÜLLER | 86461 |
| TIRSAN | 21151103152 |
| TOHO | Z3-1800236 |
| TOHO | B3226-3197-0 |
| UD TRUCKS | 5437030Z0A |
| VDL | 759000181 |
| VDL | 20262643 |
| VDL | 262643 |
| VOLVO | WA4410501000 |
| VOLVO | WAB4410501000 |
| WABASH | 10800500 |
