Description

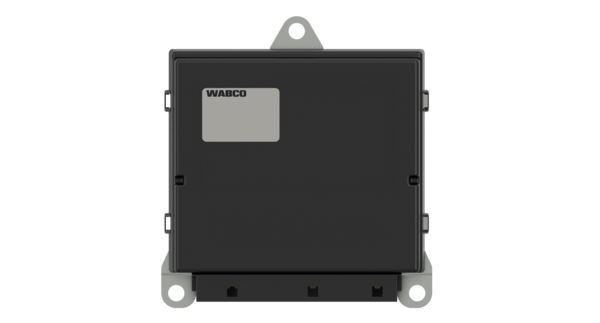

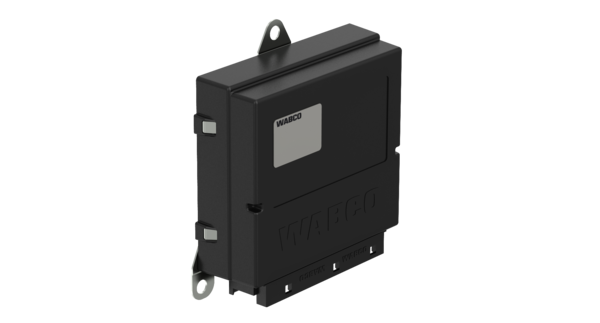

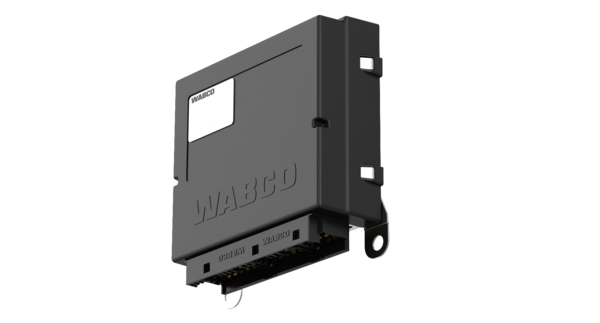

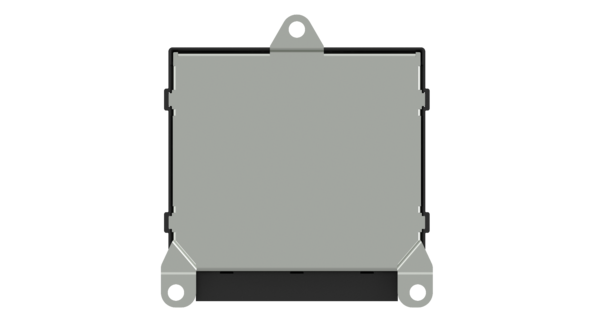

ECAS ECU
Part Number: 4461702270
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Bus |
| Calculated Volume (dm³) | 0.675 |
| Connector pins | X1=18, X2=15, X3=9 |
| Distance between holes | 112×122 mm |
| Mounting | 3 x Ø 7.5 mm |
| Product category | Device |
| Protection class | IP 30 ( IEC 529 ) |
| System | ECAS 6 x 2 BUS CAN 2 |
| Technical specification | OE specification |
| Temperature range | -40°C to +75°C |
| Voltage | 24 V |
| GTIN | 4057875190257 |
| Size (mm x mm x mm) | 126 x 134 x 40 |
| UPC | 193133439691 |
| Weight (kg) | 0.285 |
| Weight (lb) | 0.62832 |
OEM Cross References
| Brand | Reference No |
|---|---|
| HYUNDAI | 95600 8K300 |
| KENWORTH | S4461702270 |
| KIA | 956008K300 |
| MACK | 6300-4461702270 |
| MERITOR | S4461702270 |
| PETERBILT | S4461702270 |
| VOLVO | WAB4461702270 |
