Description

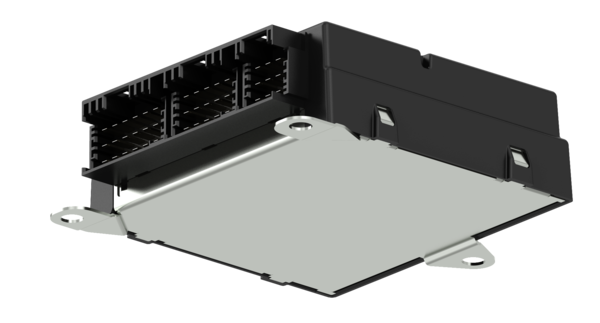

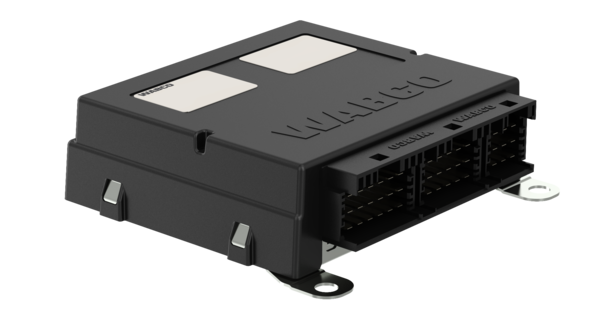

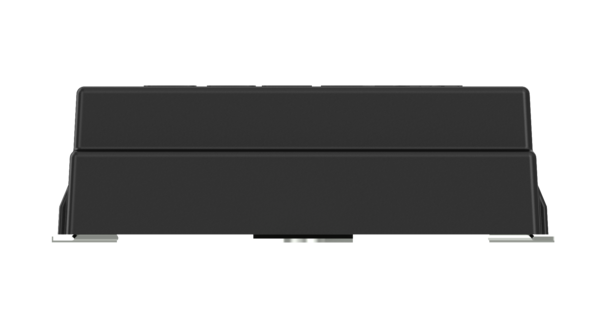

ECAS ECU
Part Number: 4461702160
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Scania |
| Calculated Volume (dm³) | 0.61488 |

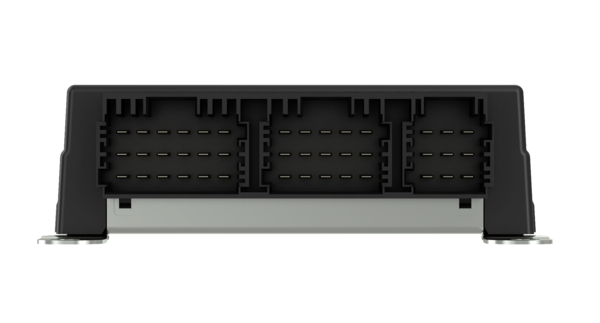

| Connector pins | X1=18, X2=15, X3=9 |
| Distance between holes | 112×122 mm |
| Mounting | 3 x Ø 7.5 mm |
| Product category | Device |
| Protection class | IP 40 ( IEC 529 ) |
| System | ECAS 6 x 2 BUS CAN 2 |
| Technical specification | OE specification |
| Temperature range | -40°C to +75°C |
| Voltage | 24 V |
| GTIN | 7895851041646 |
| Size (mm x mm x mm) | 122 x 126 x 40 |
| UPC | 193133002475 |
| Weight (kg) | 0.288 |
| Weight (lb) | 0.63493 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCANIA | 1759696 |
| SCANIA | 1851677 |
| SCANIA | 1526130 |
| SCANIA | 1530440 |
