Description

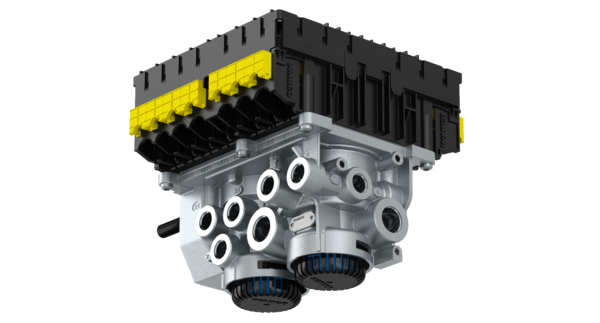

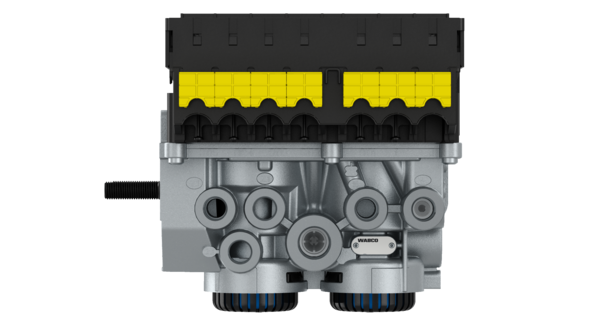

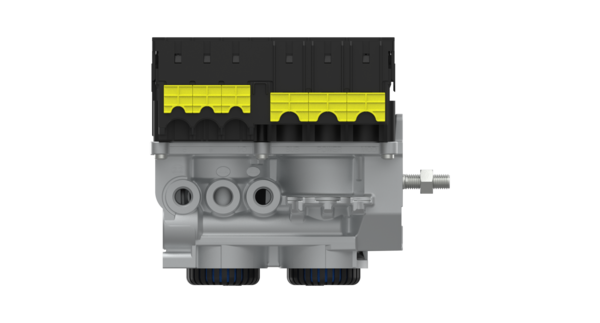

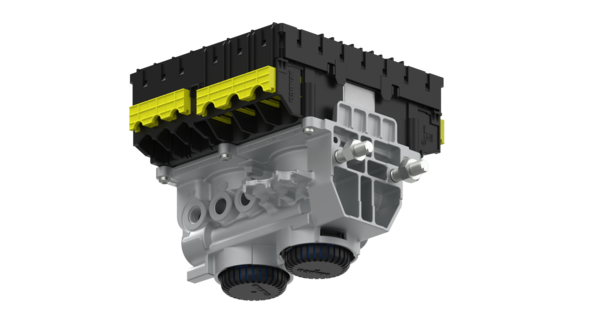

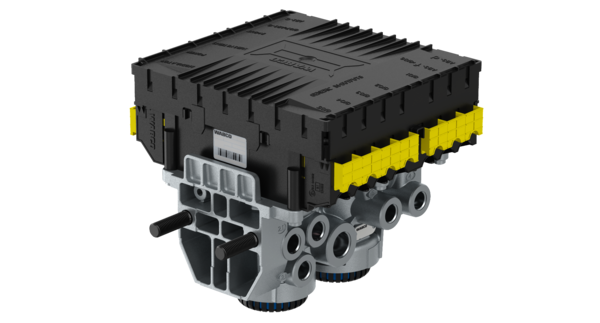

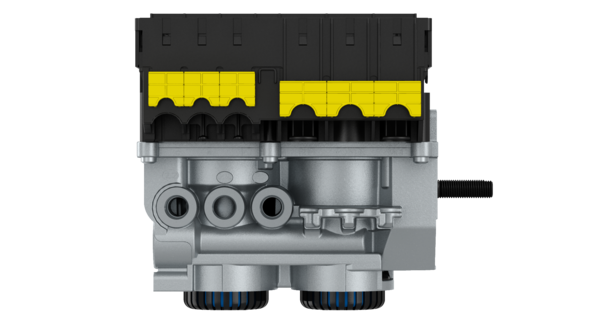

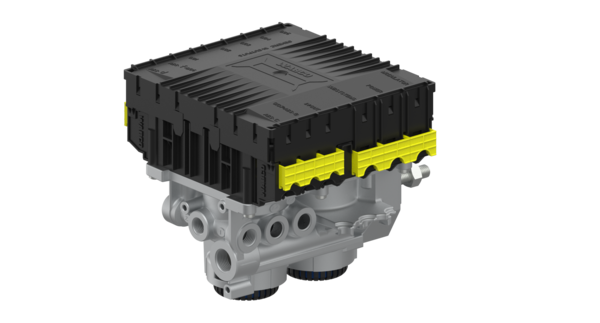

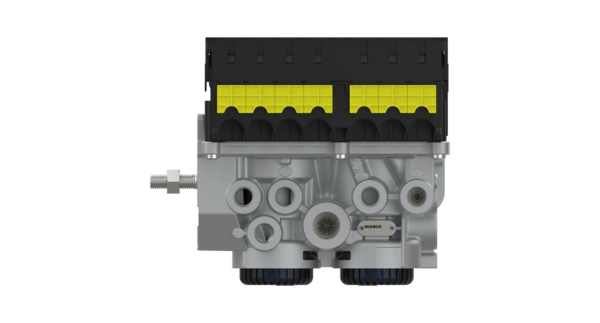

EBS Trailer Modulator 24V
Part Number: 480102060R
Technical Specifications
| Brand | ZF REMAN – WABCO |
| Part type | Remanufactured |
| Calculated Volume (dm³) | 8.87 |
| Distance between bolts | 70.0 mm |
| Important information | Please purchase Kit 4615139202 for proper installation when replacing a modulator with PEM. |
| Max. operating pressure | 8.5 bar |
| Mounting | 2x M12 |
| Port thread 1 | M22 x 1.5 JED-152 |
| Port thread 21 | M16 x 1.5 JED – 152 |
| Port thread 22 | M16 x 1.5 JED – 152 |
| Port thread 3 | 2 Integrated Silencer |
| Port thread 4 | M16 x 1.5 JED – 152 |
| Port thread 5 | M16 x 1.5 JED-152 |
| Product category | Device |
| Protection class | IP 6K9K |
| System | 4S/3M |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | Premium |
| Version | TEBS E without PEM |
| Voltage | 24 V |
| GTIN | 04057885319419 |
| Size (mm x mm x mm) | 224 x 200 x 198 |
| UPC | 193133532460 |
| Weight (kg) | 4.4 |
| Weight (lb) | 9.7 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DOLL | 7121723 |
| FAYMONVILLE | 151865 |
| FAYMONVILLE | 151856 |
| FRUEHAUF | 5311-069 |
| GOLDHOFER | 170878 |
| HAMANA | GB42000800 |
| KENWORTH | S480-102-060-0 |
| KODAIRA | VS70000254 |
| MERITOR | S4801020600 |
| NIPPON SHARYO | A3000JC15900 |
| NIPPON TREX | 924301-00109 |
| NOOTEBOOM | 3330333 |
| PACCAR | 905815 |
| PETERBILT | S480-102-060-0 |
| SCANIA | 1935125 |
| SCHMITZ CARGOBULL | 1103984 |
| TOHO | T423-039 |
