Description

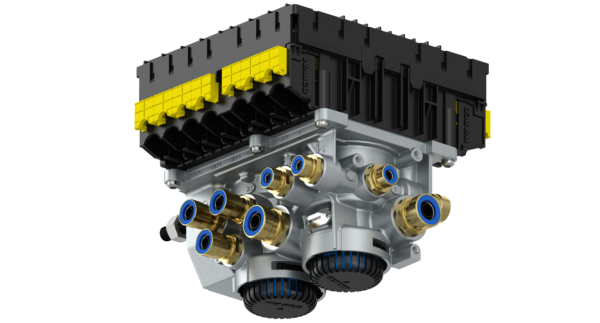

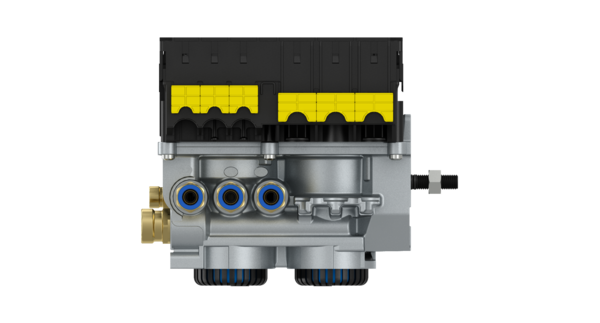

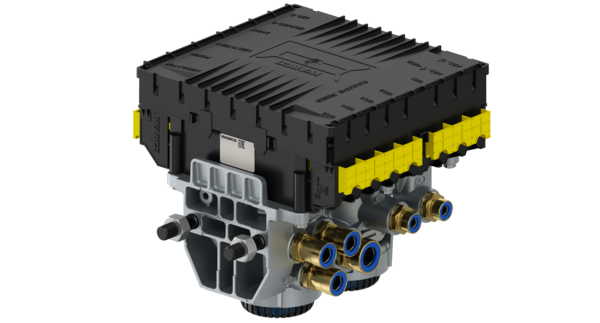

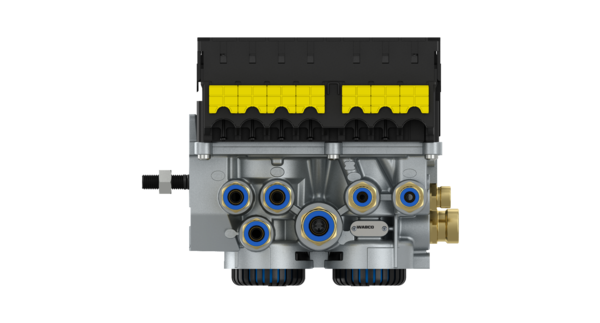

EBS-Trailer Modulator 24V
Part Number: 4801020620
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 35.757 |
| Distance between bolts | 70 mm |
| Max. operating pressure | 8.5 bar |
| Mounting | 2x M12 |
| Port thread 1 | 15 x 1.5 |
| Port thread 21 | 12 x 1.5 |
| Port thread 22 | 12 x 1.5 |
| Port thread 3 | 2 Integrated Silencer |
| Port thread 4 | 8 x 1 |
| Port thread 5 | 8 x 1 |
| Product category | Device |
| Protection class | IP 6K9K |
| System | 4S/3M |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Type | Premium |
| Version | TEBS E without PEM |
| Voltage | 24 V |
| GTIN | 04057875228806 |
| Size (mm x mm x mm) | 224 x 214 x 198 |
| UPC | 193133317203 |
| Weight (kg) | 5.1 |
| Weight (lb) | 11.24 |
OEM Cross References
| Brand | Reference No |
|---|---|
| GOLDHOFER | 171179 |
| KRONE | 515002265 |
| SCANIA | 2090392 |
