Description

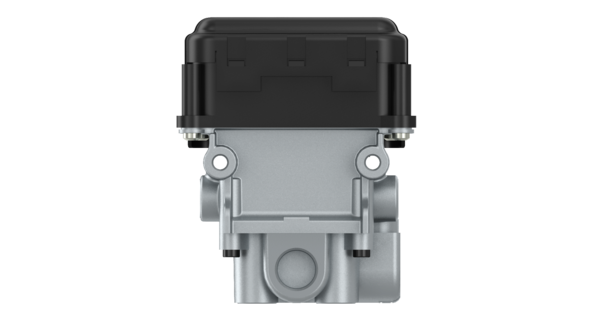

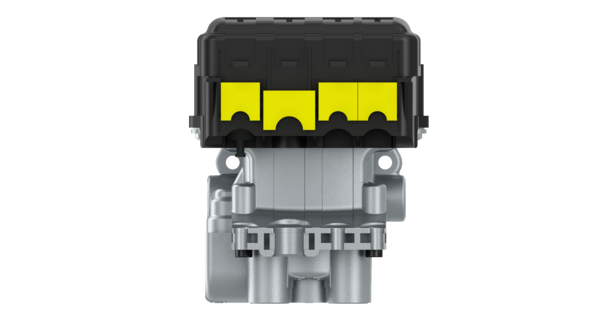

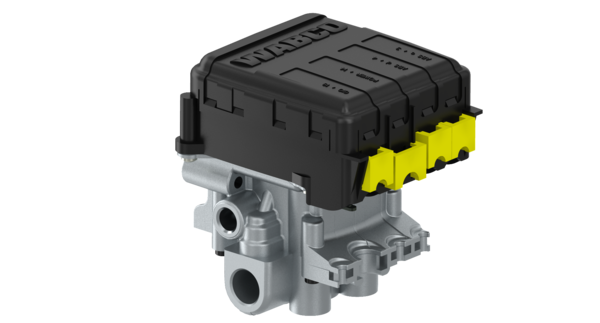

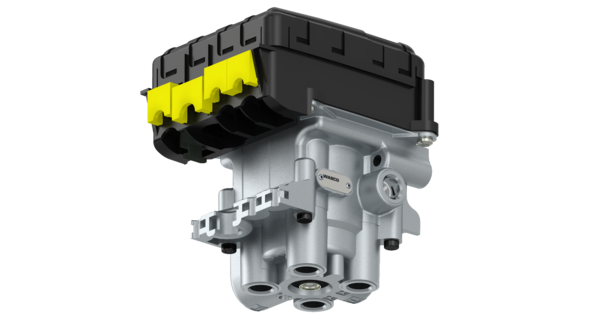

EBS-Trailer Modulator 12 Volt
Part Number: 4801100010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.989 |
| Distance between holes | 89 mm |
| Max. operating pressure | 8.5 bar |
| Mounting | 2x 3/8″ – 16 UNC mm |
| Port thread 1 | 3/4″ – 14 NPTF -JED-686 |
| Port thread 21 | 3/8″ – 18 NPTF – JED-686 |
| Port thread 22 | 3/8″ – 18 NPTF – JED-686 |
| Port thread 4 | 3/8″ – 18 NPTF – JED – 686 |
| Port thread 5 | 3/8″ – 18 NPTF – JED-686 |
| Product category | Device |
| Protection class | IP 6K9K |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Version | Without PEM |
| Voltage | 12 V |
| GTIN | 04057875229568 |
| Size (mm x mm x mm) | 170 x 140 x 167.6 |
| UPC | 193133444879 |
| Weight (kg) | 2.1 |
| Weight (lb) | 4.63 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FREIGHTLINER | TDAS4801100010 |
| GREAT DANE | 40502998 |
| HYUNDAI | 10045145 |
| KENWORTH | S4801100010 |
| MACK | 6300-4801100010 |
| PETERBILT | S4801100010 |
| STOUGHTON | 46040401600 |
| STRICK | 700042 |
| VANGUARD | 1ABS00104 |
| VOLVO | WAB4801100010 |
| WABASH | 10800485 |
| WILSON | APP05152D |
