Description

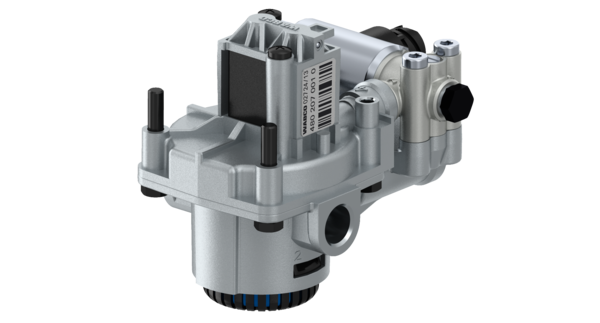

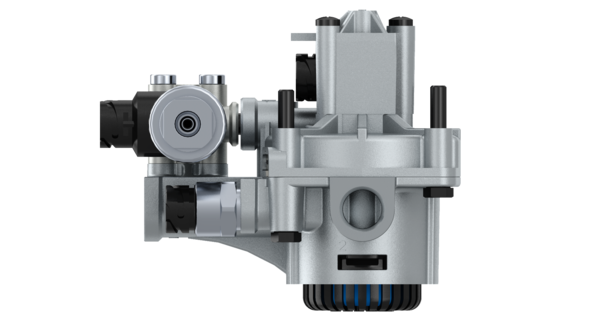

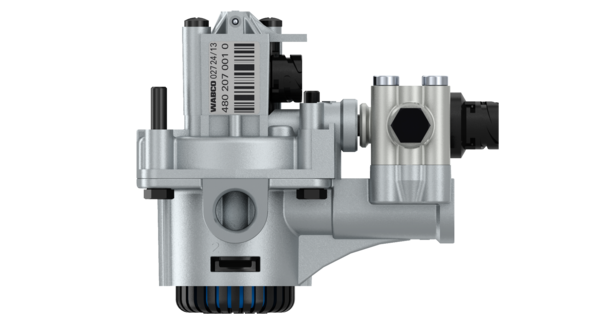

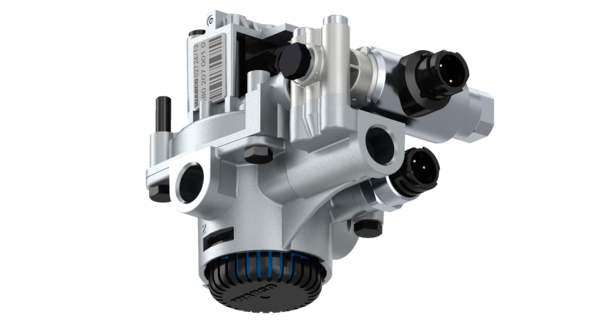

EBS-Relay Valve
Part Number: 4802070010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 3.5599 |
| Distance between bolts | 75×75 mm |
| Electrical connection | 3x Bayonet DIN 72585 |
| Max. operating pressure | 10.0 bar |
| Mounting | 3x M8 |
| Port thread 1 | M22 x 1.5 |
| Port thread 2 | M22 x 1.5 |
| Port thread 3 | Integrated Silencer |
| Port thread 4 | M12 x 1.5 JED – 464 |
| Product category | Device |
| Protection class | IP 69K |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 7895851041868 |
| Size (mm x mm x mm) | 181 x 149 x 132 |
| UPC | 193133444893 |
| Weight (kg) | 1.787 |
| Weight (lb) | 3.9397 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1506237 |
| DOLL | 7060956 |
| FAYMONVILLE | 4731 |
| FAYMONVILLE | 4371 |
| FELDBINDER | 008851 |
| FELDBINDER | 1055343 |
| FRUEHAUF | GB52000130 |
| GOLDHOFER | 169976 |
| HAMANA | GB52000130 |
| HINO | S4802070010 |
| HÜFFERMANN | 6BE00090100 |
| KENWORTH | S4802070010 |
| KODAIRA | V700120005 |
| KRONE | 5813520 |
| KRONE | 0642070010 |
| KRONE | 58135200 |
| KRONE | 505813520 |
| KÄSSBOHRER | 21150110015 |
| KÖGEL | 339103 |
| KÖGEL | 3391030 |
| LANGENDORF | 1200035 |
| LECITRAILER | 4300621 |
| LOHR | A05101330 |
| MERITOR | S4802070010 |
| NIPPON TREX | 924301-00132 |
| NOOTEBOOM | 2438894 |
| NOOTEBOOM | 161326 |
| PACCAR | 1506237 |
| PETERBILT | S4802070010 |
| SCANIA | 1738467 |
| SCHMITZ CARGOBULL | 054564 |
| SCHMITZ CARGOBULL | 54564 |
| SCHMITZ CARGOBULL | INSO160069 |
| SCHMITZ CARGOBULL | INS0160069 |
| SCHWARZMÜLLER | 71771 |
| SCHWARZMÜLLER | 41400 |
| TIRSAN | 21150110015 |
| TOHO | T423-007 |
| VAN HOOL | 10744305 |
| VOLVO | WA4802070010 |
