Description

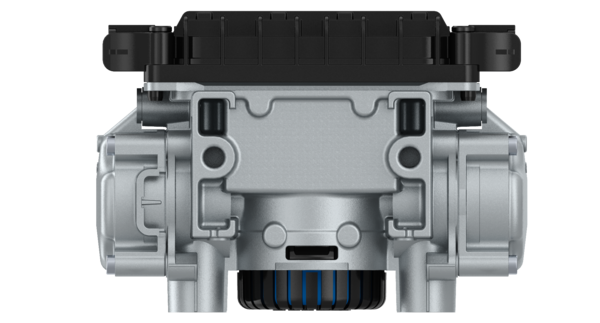

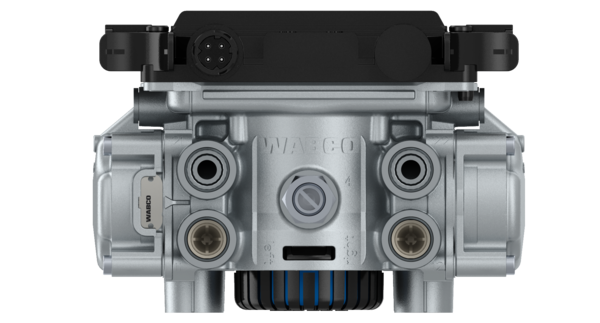

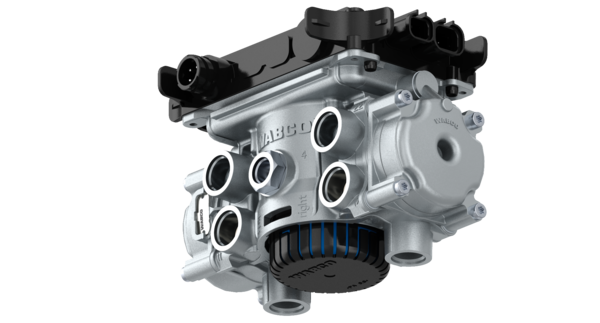

EBS Axle Modulator 2-Channel – Gen2
Part Number: 4801041070
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | ZA 2S 2M 4W in 6K-System bzw. AA 2S 2M 2W in 3/4k-System |
| Calculated Volume (dm³) | 4.858 |
| Distance between holes | 100 mm |
| Electrical connection | Bayonet DIN 72585 1A-4.1-Sn/K2 |
| Max. operating pressure | 12.8 bar |
| Mounting | 2x M12 x 1.5 |
| Port thread 11 | M22 x 1.5 JED – 388-4 |
| Port thread 12 | M22 x 1.5 JED – 388-4 |
| Port thread 21 | M22 x 1.5 JED – 388-4 |
| Port thread 22 | M22 x 1.5 JED – 388-4 |
| Port thread 3 | Integrated Silencer |
| Port thread 4 | M16 x 1.5 JED – 388-4 |
| Product category | Device |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 10 A |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Additional axle 2S 2M 2W/4W |
| Voltage | 24 V |
| GTIN | 4057875229315 |
| Size (mm x mm x mm) | 220 x 160 x 138 |
| UPC | 193133317722 |
| Weight (kg) | 3.031 |
| Weight (lb) | 6.682 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1527245 |
| MAN | 81521066059 |
| MAN | 81521066066 |
| MAN | 81521069072 |
| NEOPLAN | 81521066059 |
| PACCAR | 1527245 |
