Description

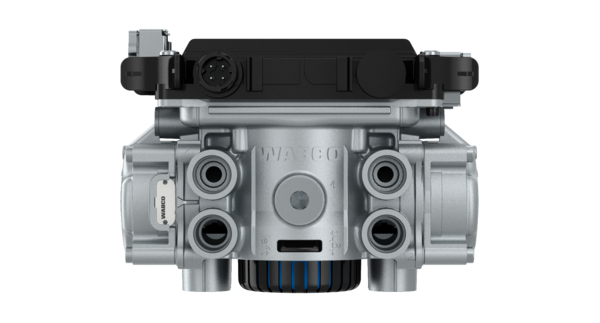

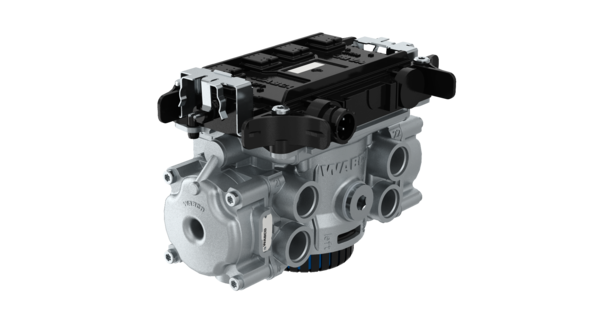

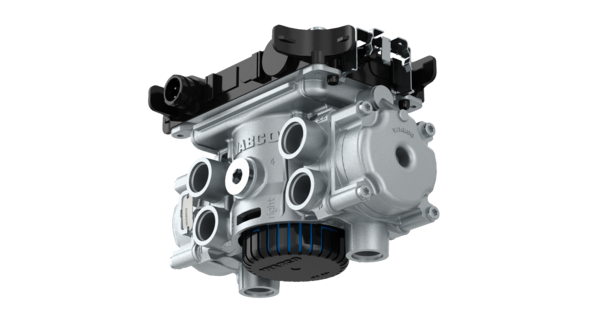

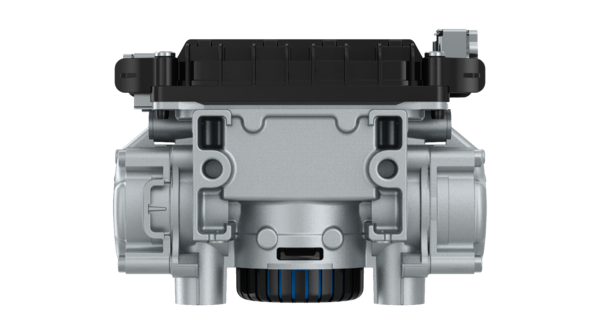

EBS Axle Modulator 2-Channel – Gen2
Part Number: 4801040030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Drive axle without redundancy 2S 2M |
| Calculated Volume (dm³) | 4.6704 |
| Comments | Volume production modification |
| Distance between holes | 100 mm |
| Electrical connection | Bayonet DIN 72585 1A-4.1-Sn/K2 |
| Max. operating pressure | 12.5 bar |
| Mounting | 2x M12 x 1.5 |
| Port thread 11 | M22 x 1.5 JED – 388-4 |
| Port thread 12 | M22 x 1.5 JED – 388-4 |
| Port thread 21 | M22 x 1.5 JED – 388-4 |
| Port thread 22 | M22 x 1.5 JED – 388-4 |
| Port thread 3 | Integrated Silencer |
| Port thread 4 | M16 x 1.5 JED – 388-4 |
| Product category | Device |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 10 A |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Drive axle 2S 2M without backup valve |
| Voltage | 24 V |
| GTIN | 4057875229186 |
| Size (mm x mm x mm) | 222 x 134 x 157 |
| UPC | 193133317692 |
| Weight (kg) | 3.05 |
| Weight (lb) | 6.7241 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1607915 |
| LEYLAND DAF | 1607915 |
| SCANIA | 1935134 |
