Description

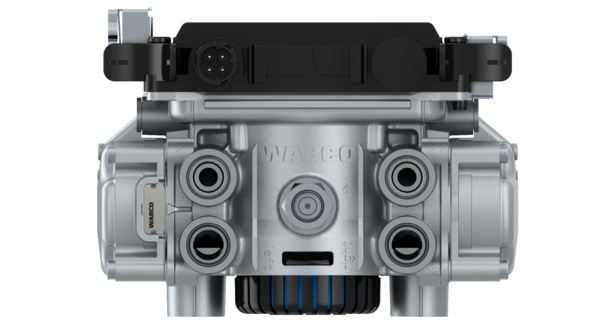

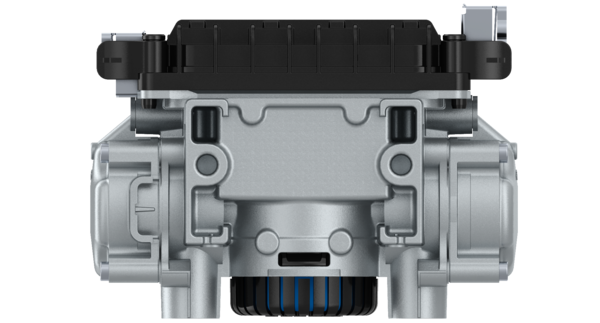

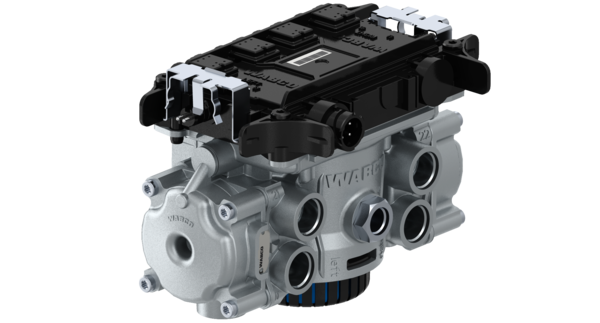

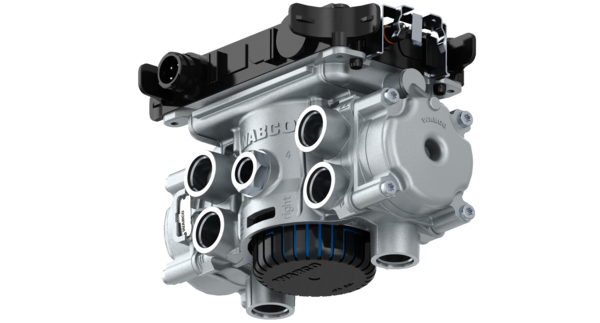

EBS Axle Modulator 2-Channel – Gen2
Part Number: 480104002R
Technical Specifications
| Brand | ZF REMAN – WABCO |
| Part type | Remanufactured |
| Application | AA 2S 2M |
| Calculated Volume (dm³) | 7.446 |
| Comments | Serienabwandlung |
| Distance between holes | 100 mm |
| Electrical connection | Bayonet DIN 72585 1A-4.1-Sn/K2 |
| Max. operating pressure | 12.5 bar |
| Mounting | 2x M12 x 1.5 |
| Port thread 11 | M22 x 1.5 JED – 388-4 |
| Port thread 12 | M22 x 1.5 JED – 388-4 |
| Port thread 21 | M22 x 1.5 JED – 388-4 |
| Port thread 22 | M22 x 1.5 JED – 388-4 |
| Port thread 3 | Integrated Silencer |
| Port thread 4 | M16 x 1.5 JED – 388-4 |
| Product category | Device |
| Protection class | IP 6K6K, IP 6K9K |
| Rated current | 10 A |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Drive axle 2S 2M |
| Voltage | 24 V |
| GTIN | 04057885486722 |
| Size (mm x mm x mm) | 230 x 185 x 175 |
| UPC | 193133549956 |
| Weight (kg) | 3.264 |
| Weight (lb) | 7.196 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1607919 |
| HYUNDAI | 595307M010 |
| HYUNDAI | 59530 7M010 |
| HYUNDAI | 59530 8KHA0 |
| LEYLAND DAF | 1607919 |
| PACCAR | 1607919 |
