Description

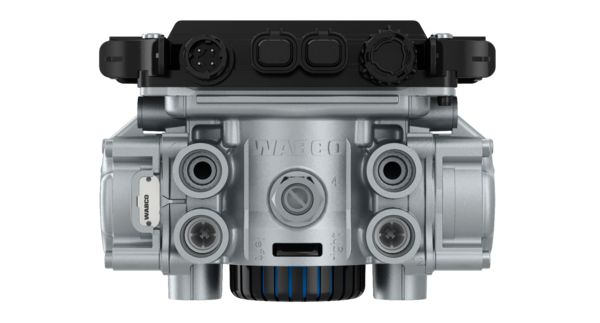

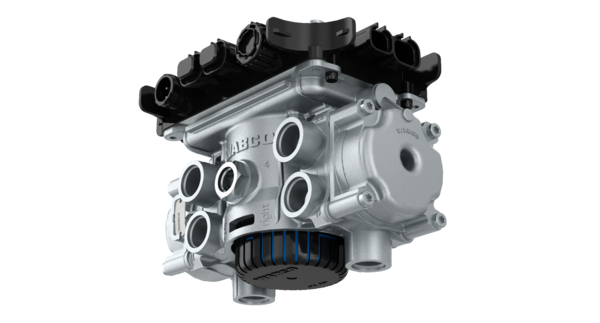

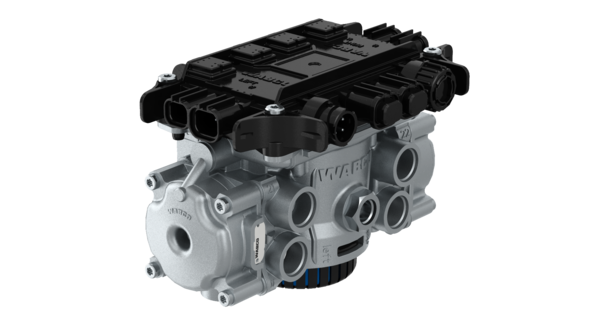

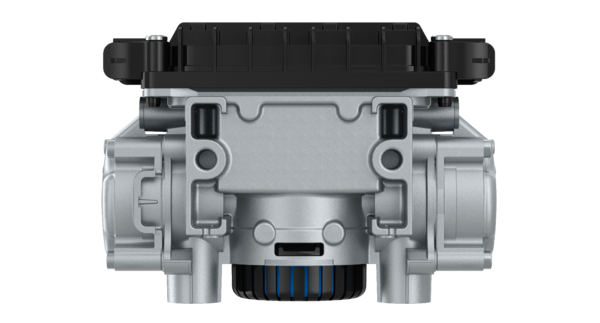

EBS Axle Modulator 2-Channel – Gen2
Part Number: 480104106R
Technical Specifications
| Brand | ZF REMAN – WABCO |
| Part type | Remanufactured |
| Application | AA 2S 2M 4W |
| Calculated Volume (dm³) | 7.366 |
| Distance between holes | 100 mm |
| Electrical connection | Bayonet DIN 72585 1A-4.1-Sn/K2 |
| Max. operating pressure | 12.8 bar |
| Mounting | 2x M12 x 1.5 |
| Port thread 11 | M22 x 1.5 JED – 388-4 |
| Port thread 12 | M22 x 1.5 JED – 388-4 |
| Port thread 21 | M22 x 1.5 JED – 388-4 |
| Port thread 22 | M22 x 1.5 JED – 388-4 |
| Port thread 3 | Integrated Silencer |
| Port thread 4 | M16 x 1.5 JED – 388-4 |
| Product category | Device |
| Protection class | IP 6K6K / IP 6K9K |
| Rated current | 10 A |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Drive axle 2S 2M 4W |
| Voltage | 24 V |
| GTIN | 04057885498503 |
| Size (mm x mm x mm) | 230 x 183 x 175 |
| UPC | 193133549918 |
| Weight (kg) | 3.298 |
| Weight (lb) | 7.271 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 81521066071 |
| MAN | 81521066058 |
| MAN | 81521066039 |
| MAN | 81521066065 |
| NEOPLAN | 81521066058 |
