Description

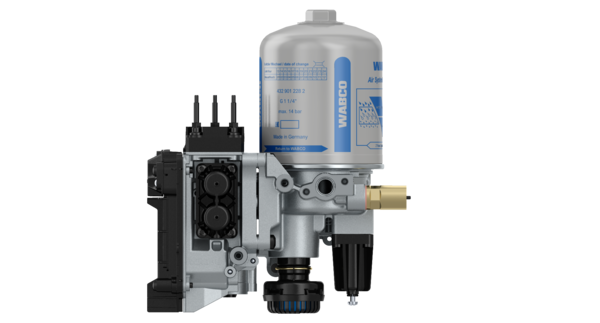

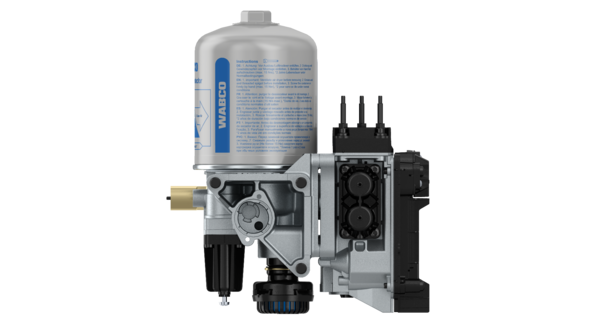

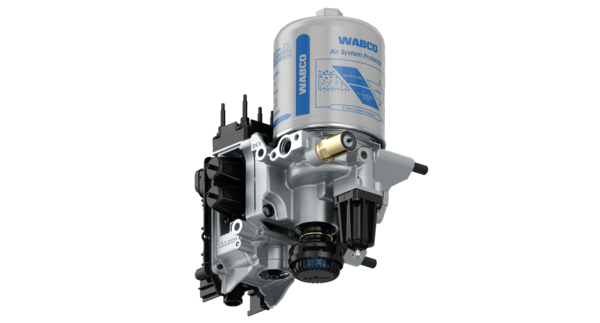

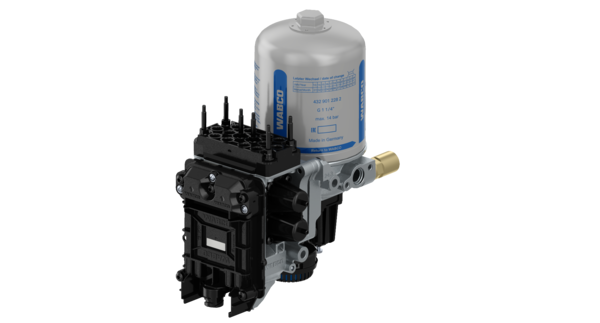

E-APU
Part Number: 932510009R
Technical Specifications
| Brand | ZF REMAN – WABCO |
| Part type | Remanufactured |
| Calculated Volume (dm³) | 31.49 |
| Closing pressure static 21 | 4.5 bar |
| Closing pressure static 22 | 4.5 bar |
| Closing pressure static 23 | 4.5 bar |
| Closing pressure static 24 | 4.5 bar |
| Max. operating pressure | 12.5 bar |
| Opening pressure 21 | 7.5 bar |
| Opening pressure 22 | 7.5 bar |
| Opening pressure 23 | 7.2 bar |
| Opening pressure 24 | 7.5 bar |
| Opening pressure 25 | 8.5 bar |
| Port thread 12 | M12 x 1.5 |
| Port thread 24 | M12 x 1.5 |
| Port thread 4 | M12 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Voltage | 24 V |
| GTIN | 04057875782322 |
| Size (mm x mm x mm) | 370 x 230 x 370 |
| UPC | 193133415350 |
| Weight (kg) | 8.36 |
| Weight (lb) | 18.43 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SCANIA | 1474663 |
| SCANIA | 1535829 |
| SCANIA | 1753577 |
| SCANIA | 1738295 |
| SCANIA | 1770184 |
| SCANIA | 1928589 |
| SCANIA | 1796161 |
| SCANIA | 1941953 |
| SCANIA | 2148069 |
| SCANIA | 2063357 |
| SCANIA | 2308777 |
| SCANIA | 1543224 |
| SCANIA | 1763425 |
| SCANIA | 1897631 |
| SCANIA | 2089579 |
