Description

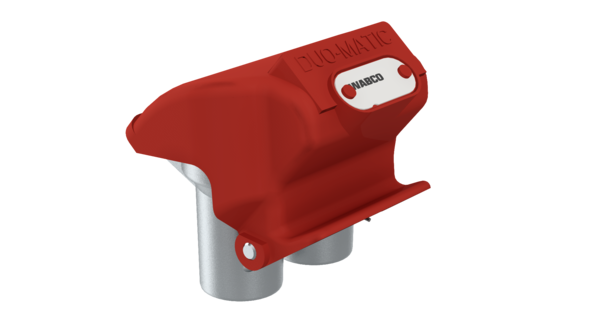

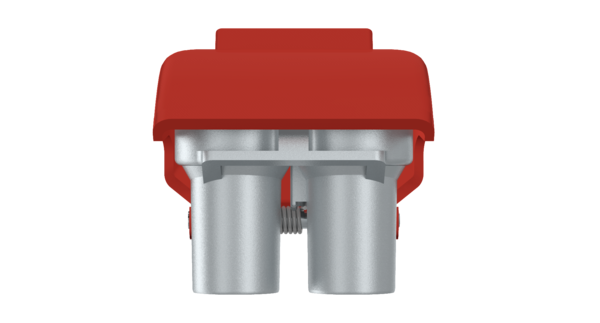

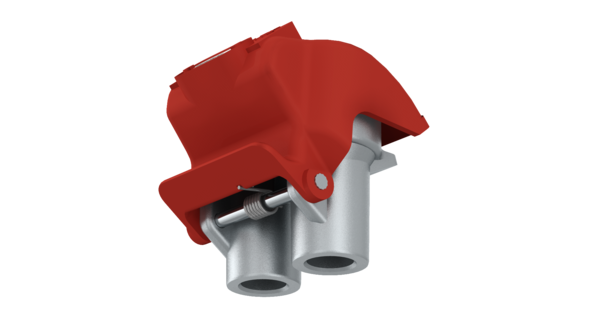

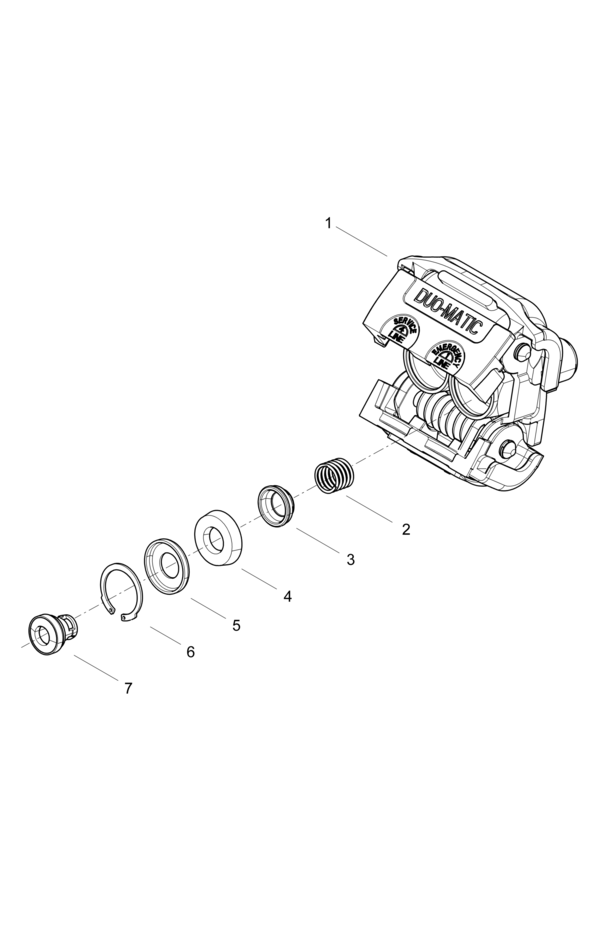

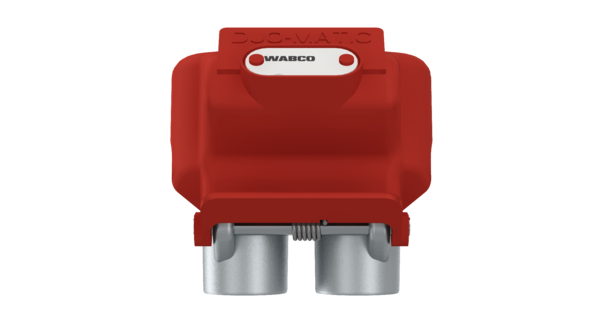

Duomatic
Part Number: 4528050040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Application | Towing vehicle |
| Calculated Volume (dm³) | 1.0217 |
| Max. operating pressure | 10.0 bar |
| Port thread 1 | M16 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Port threads | M16 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | Towing vehicle / semitrailer |
| Version | Without lever |
| GTIN | 04057875207566 |
| Size (mm x mm x mm) | 153 x 106 x 63 |
| UPC | 193133301363 |
| Weight (kg) | 0.236 |
| Weight (lb) | 0.52029 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1325339 |
| DOLL | 7029482 |
| EVOBUS | 8285385000 |
| EVOBUS | A0004299830 |
| FAYMONVILLE | 1249 |
| FELDBINDER | 010377 |
| FRUEHAUF | CF3517862 |
| FRUEHAUF | H03196101 |
| FRUEHAUF | A57432M10A01 |
| GOLDHOFER | 154434 |
| IVECO | R00070447 |
| KRONE | 945411 |
| KRONE | 5009454110 |
| KRONE | 500945411 |
| KÄSSBOHRER | 21151199018 |
| KÖGEL | 76625 |
| LANGENDORF | 1110975 |
| LECITRAILER | 4110831 |
| MAFI | 5670019 |
| MAFI | 0005670019 |
| MAN | 82512206027 |
| MAN | 81512206027 |
| MAN | ZQFL0000001 |
| MERCEDES-BENZ | 0004299830 |
| MERCEDES-BENZ | A0004299830 |
| NEOPLAN | 82512206027 |
| NOOTEBOOM | 307017 |
| NOOTEBOOM | 09579 |
| ORTHAUS | 462011 |
| PACCAR | 1325339 |
| SCANIA | 373402 |
| SCANIA | 1853177 |
| SCHMITZ CARGOBULL | 051433 |
| SCHMITZ CARGOBULL | 51433 |
| SCHMITZ CARGOBULL | 114072 |
| SCHWARZMÜLLER | 24250 |
| TIRSAN | 21151199018 |
| VOLVO | 1622573 |
| VOLVO | 355827 |
| VOLVO | WA4528050040 |
