Description

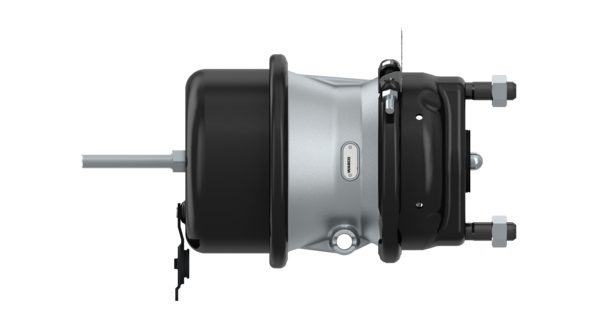

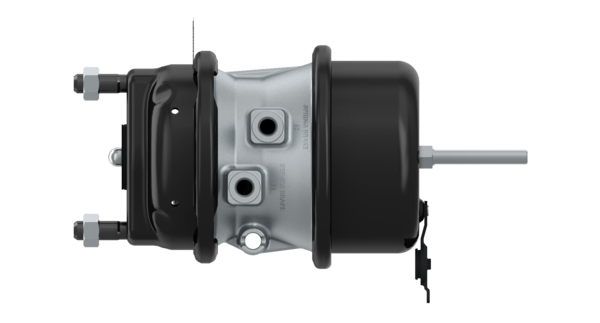

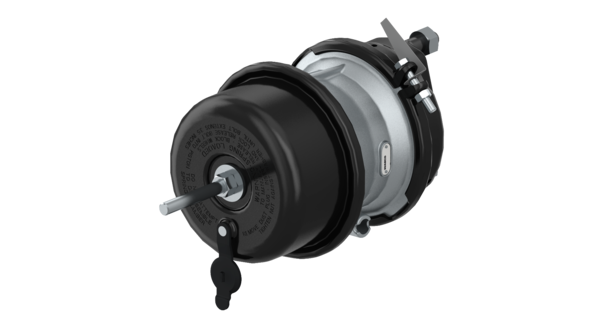

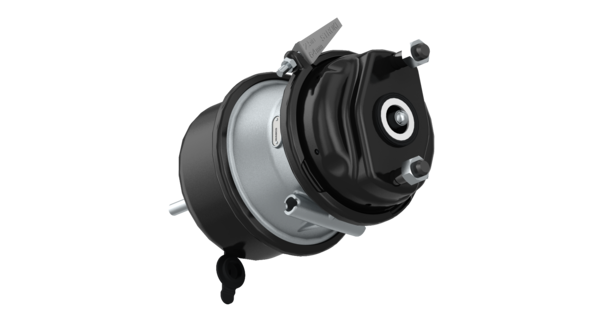

Double Diaphragm Tristop
Part Number: 9253801010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 43.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 16.606 |
| Clamp band | Ø 178 mm |
| Clamp band position | -135° |
| Cooling | Air |
| Diameter | 184.0 mm |
| Distance between bolts | 120.6 mm |
| Length | 240.5 mm |
| Max. operating pressure | 10.5/8.5 bar |
| Nominal diameter | 9.0 mm |
| Output force | 10000 N |
| Output force m | 10000 N |
| Port angle | Position Side port 90° |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Port threads | M12 x 1.5 |
| Product category | Device |
| Push-rod length | 15 mm |
| Push-rod thread | Ball R8 |
| Release pressure | 5.1 bar |
| Return-spring force | 200 N |
| Stroke | 64.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 329.5 mm |
| Type | 20/24 |
| Type of operation | Disc |
| Version | Without boot |
| Wrench size | 19.0 mm |
| GTIN | 04057875278399 |
| Size (mm x mm x mm) | 380 x 190 x 185 |
| UPC | 193133447740 |
| Weight (kg) | 7 |
| Weight (lb) | 15 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 0907723 |
| PACCAR | 0907723 |
| SAF | 4454107930 |
| SAF | 4454107830 |
| SAF | 4454107964 |
| SCANIA | 2120397 |
