Description

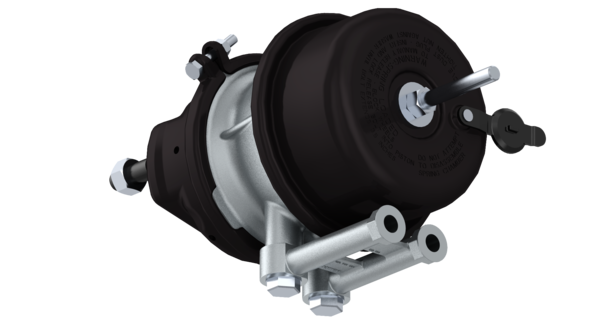

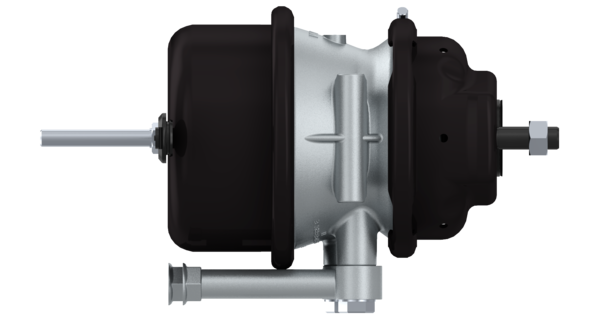

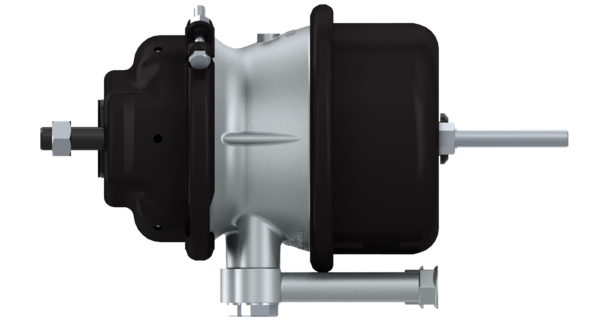

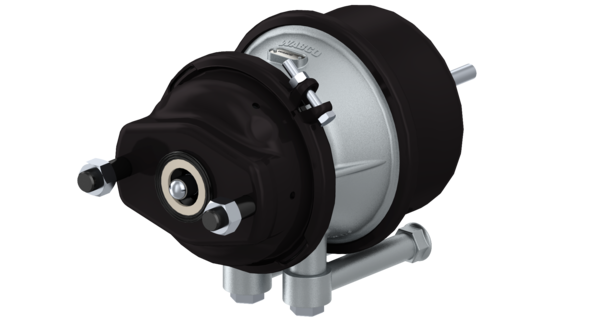

Double-Diaphragm Tristop Type 16/24
Part Number: 9253840160
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 43.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 15.466 |
| Clamp band | Ø 167 mm |
| Clamp band position | -135° |
| Diameter | 184.0 mm |
| Distance between bolts | 120.6 mm |
| Length | 229 mm |
| Max. operating pressure | 10.5/8.5 bar |
| Port angle | Position Side port 90° |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Product category | Device |
| Push-rod length | 15 mm |
| Push-rod thread | Ball R8 |
| Release pressure | 5.1 bar |
| Return-spring force | 100 N |
| Stroke | 57/57 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 318.0 mm |
| Type | 16/24 |
| Type of operation | Disc |
| Version | Without boot |
| GTIN | 04057875278498 |
| Size (mm x mm x mm) | 370 x 220 x 190 |
| UPC | 193133349280 |
| Weight (kg) | 7.1 |
| Weight (lb) | 16 |
