Description

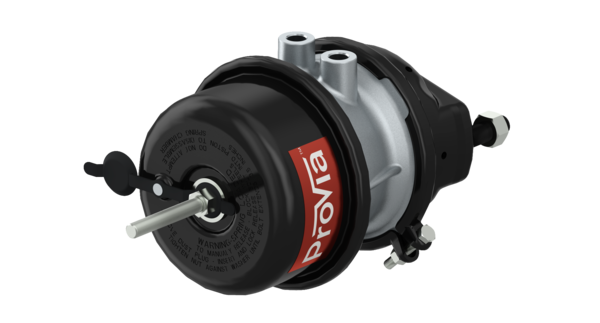

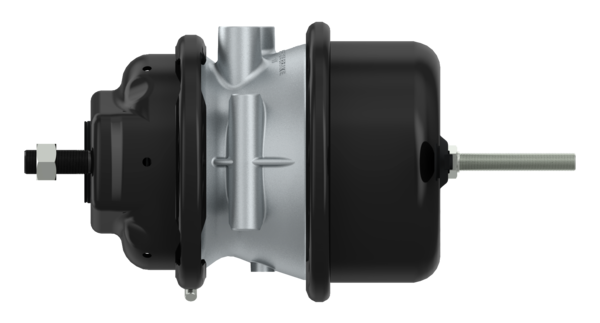

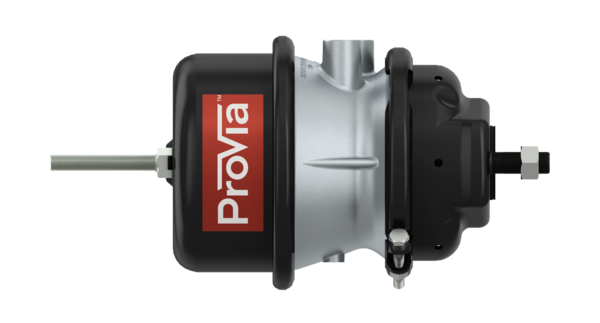

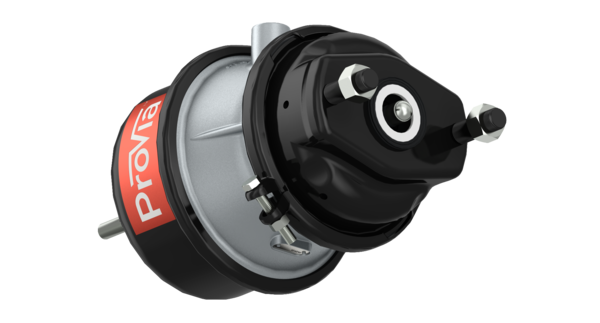

Double-Diaphragm Tristop DISC
Part Number: PRO7127130
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Bolt lengths | 42.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 11.99 |
| Clevis pins | 12.5 mm |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.5/8.5 bar |
| Port angle | 90° |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Push-rod length | 235 mm |
| Push-rod thread | Ball R8 |
| Release pressure | 5.5 bar |
| Return-spring force | 100 N |
| Stroke | 63.5 mm |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Total length | 332.0 mm |
| Type | 20/24 |
| Type of operation | Disc |
| Yoke | Screwed |
| GTIN | 04057877008710 |
| Size (mm x mm x mm) | 325 x 205 x 180 |
| UPC | 193134006366 |
| Weight (kg) | 7.661 |
| Weight (lb) | 16.89 |
OEM Cross References
| Brand | Reference No |
|---|---|
| SAF | 4454107830 |
| SAF | 4454107930 |
