Description

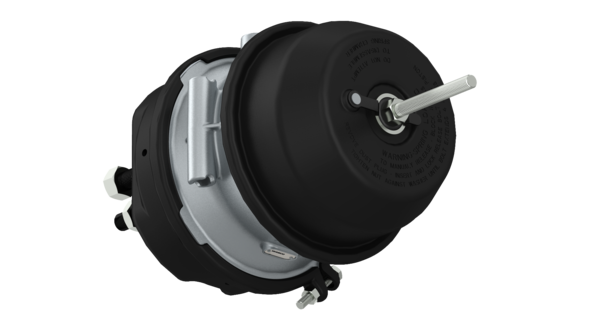

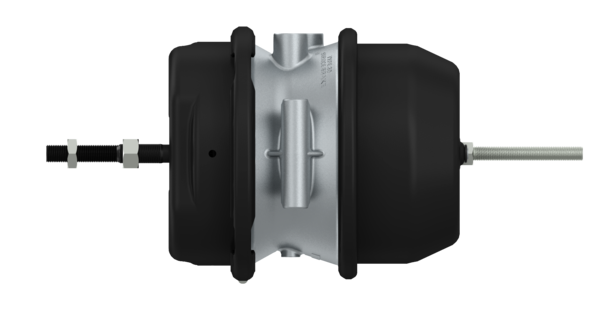

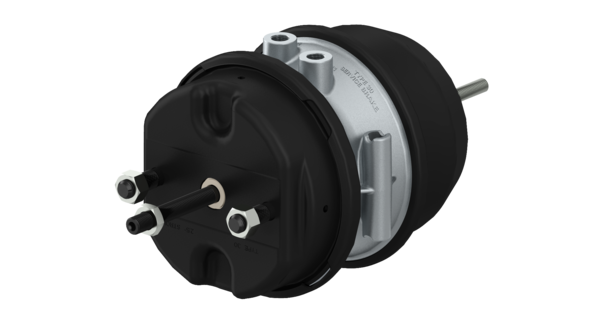

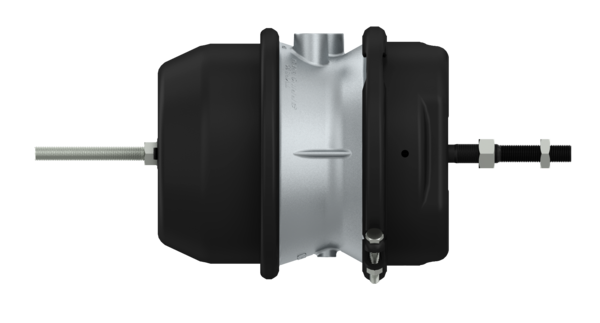

Double-Diaphragm Tristop D T30/30
Part Number: 9253772010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 42.5 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 27.531 |
| Clamp band | Ø 209 mm |
| Clamp band position | 45° |
| Diameter | 206.5 mm |
| Distance between bolts | 120.6 mm |
| Length | 239.0 mm |
| Max. operating pressure | 10.2/8.5 bar |
| Port angle | Position Side port -90° |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Port: working pressure [p emax.] | 10.2/8.5 bar |
| Product category | Device |
| Push-rod length | 225 mm |
| Push-rod thread | M16 × 1.5 |
| Release pressure | 4.9 bar |
| Stroke | 64/64 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Thread length | 225 mm |
| Total length | 340.0 mm |
| Type | 30/30 |
| Type of operation | Cam |
| Version | Without boot |
| Yoke | No |
| GTIN | 04057875329299 |
| Size (mm x mm x mm) | 570 x 230 x 210 |
| UPC | 193133413608 |
| Weight (kg) | 9.35 |
| Weight (lb) | 20.6 |
