Description

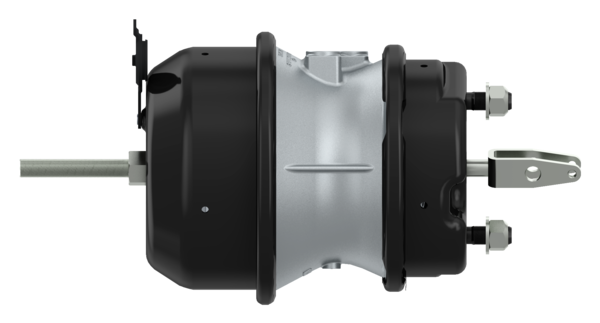

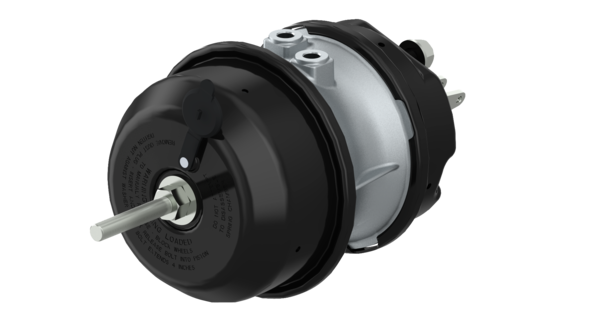

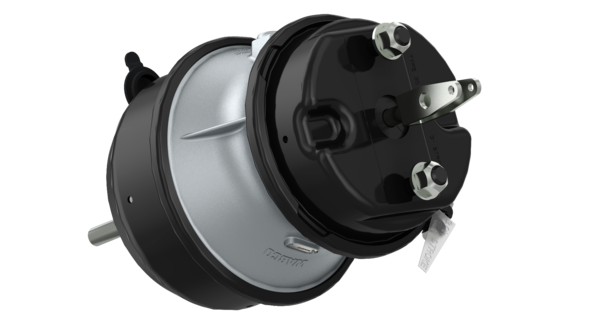

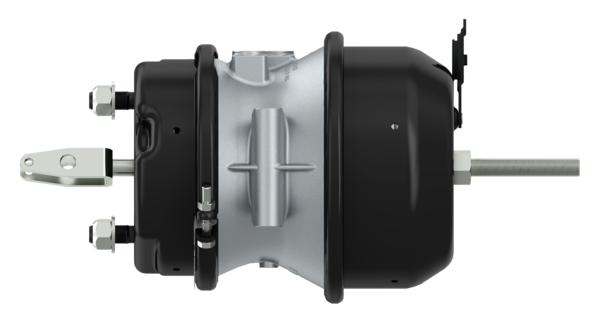

Double-Diaphragm Tristop 30/36
Part Number: 9253940020
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 38.0 mm |
| Bolt threads | 5/8” – 11 UNC |
| Calculated Volume (dm³) | 27.07 |
| Clevis pins | 12.9 mm |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.0 bar |
| Port angle | 20° |
| Port thread 11 | 3/8″ – 18 NPTF |
| Port thread 12 | 3/8″ – 18 NPTF |
| Product category | Device |
| Push-rod length | 90.2 mm |
| Release pressure | 4.9 bar |
| Stroke | 75.9 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 352.0 mm |
| Type | 30/36 |
| Type of operation | Cam |
| Version | Without boot |
| GTIN | 04057875344490 |
| Size (mm x mm x mm) | 470 x 240 x 240 |
| UPC | 193133349563 |
| Weight (kg) | 10.27 |
| Weight (lb) | 22.63 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FREIGHTLINER | WAB9253940020 |
