Description

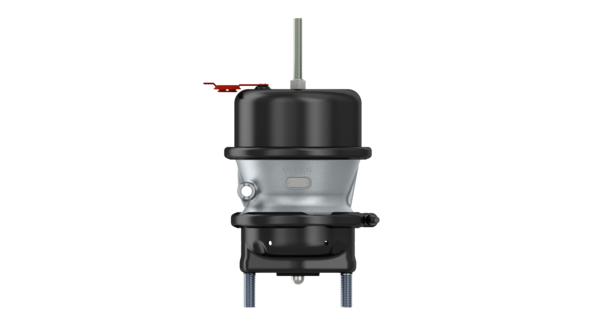

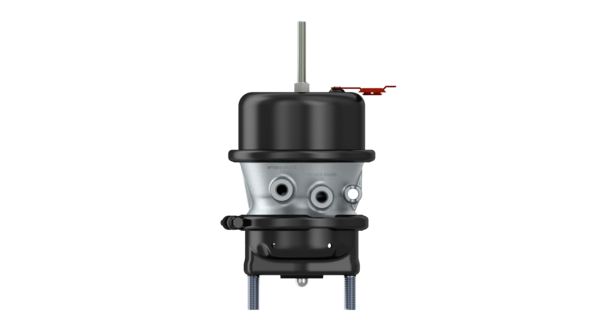

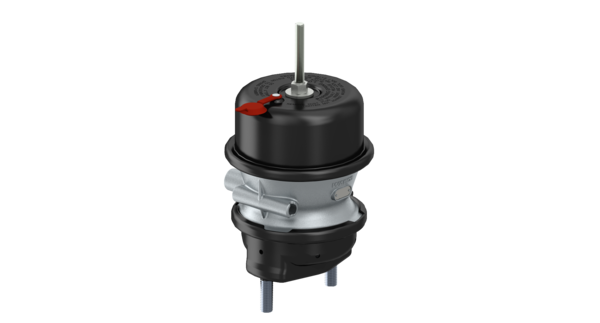

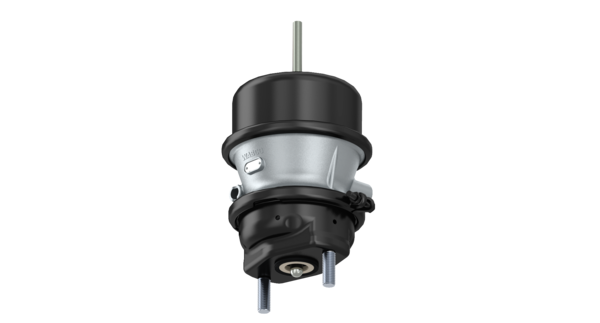

Double-Diaphragm Tristop 16/24
Part Number: 9253840290
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Bolt lengths | 43.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 12.321 |
| Clamp band | Ø 167 mm |
| Clamp band position | 160° |
| Diameter | 184.0 mm |
| Distance between bolts | 120.6 mm |
| Length | 229 mm |
| Max. operating pressure | 10.5/8.5 bar |
| Port angle | Position Side port 90° |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| Product category | Device |
| Push-rod length | 15 mm |
| Push-rod thread | Ball R8 |
| Release pressure | 5.1 bar |
| Return-spring force | 100 N |
| Stroke | 57/57 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Total length | 318.0 mm |
| Type | 16/24 |
| Type of operation | Disc |
| Version | Without boot |
| GTIN | 04057875328223 |
| Size (mm x mm x mm) | 360 x 185 x 185 |
| UPC | 193133349341 |
| Weight (kg) | 6.7 |
| Weight (lb) | 15 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1526307 |
| DAF | 907655 |
| GIGANT | 703015976 |
| PACCAR | 887765 |
| PACCAR | 907655 |
| RENDERS | 4454107764 |
| RENDERS | 4454107230 |
| RENDERS | 4454107730 |
| RENDERS | 4454107630 |
| SAF | 4454107230 |
| SAF | 4454107730 |
| SAF | 4454107630 |
| SAF | 4454107764 |
| SCANIA | 2089761 |
| SCANIA | 2111697 |
| SCHMITZ CARGOBULL | S054998 |
| SCHMITZ CARGOBULL | 1064931 |
| SCHMITZ CARGOBULL | 1282760 |
| VALX | 50397003 |
| VOLVO | WA9253840010 |
