Description

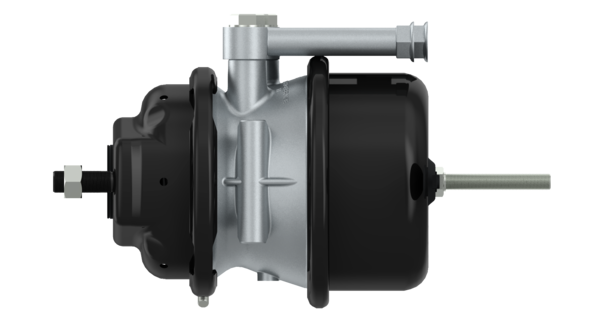

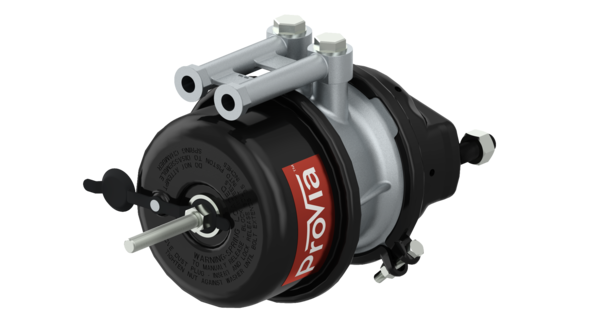

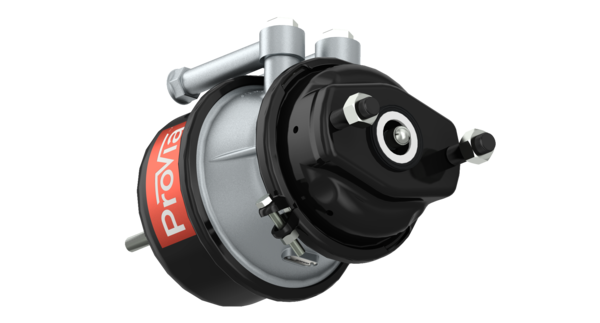

Double-Diaphragm Actuator Disc
Part Number: PRO7127150
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Bolt lengths | 42.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 13.89 |
| Clevis pins | 12.5 mm |
| Distance between bolts | 120.6 mm |
| Max. operating pressure | 10.5/8.5 bar |
| Port angle | 90° |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Push-rod length | 235 mm |
| Push-rod thread | Ball R8 |
| Release pressure | 5.5 bar |
| Return-spring force | 100 N |
| Stroke | 57.0 mm |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Total length | 324.5 mm |
| Type | 16/24 |
| Type of operation | Disc |
| Yoke | Screwed |
| GTIN | 04057877008666 |
| Size (mm x mm x mm) | 325 x 225 x 190 |
| UPC | 193134006335 |
| Weight (kg) | 7.709 |
| Weight (lb) | 17 |
