Description

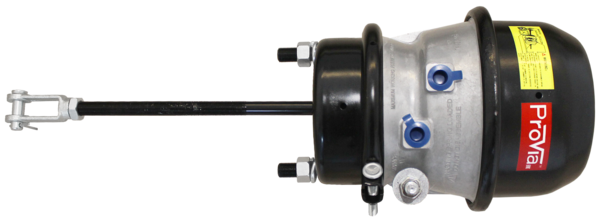

Double-Diaphragm Actuator Cam
Part Number: PRO0000090
Technical Specifications
| Brand | ProVia |
| Part type | Reliable spare parts |
| Bolt lengths | 38.0 mm |
| Bolt threads | M16 x 1.5 |
| Calculated Volume (dm³) | 37.5 |
| Certifications | SAE & TUV |
| Clamp band | 234 mm |
| Clamp band position | 45° |
| Clevis pins | 13.9 mm |
| Distance between bolts | 120.6 mm |
| Length | 261 mm |
| Max. operating pressure | 10.0 bar |
| Mounting bolt length | 38 mm |
| Mounting bolt thread | M16×1.5 |
| Operating pressure | 8.5 bar |
| Port thread | M16×1.5 |
| Port thread 11 | M16 x 1.5 |
| Port thread 12 | M16 x 1.5 |
| ProVia warranty | 1 year |
| Product category | Device |
| Push-rod length | 279 mm |
| Push-rod length + yoke | 279 mm |
| Push-rod thread | M16 × 1.5 |
| Release pressure | 4.8 bar |
| Return-spring force | 100 N |
| Size | 24 / 30 |
| Spring housing flange | 208.5 mm |
| Stroke | 76.2 mm |
| Technical specification | AM specification |
| Temperature range | -40°C to +80°C |
| Type | 20/30-3.0” |
| Type of operation | Cam |
| Version | Without boot |
| Yoke | Yes |
| GTIN | 04057877005887 |
| Size (mm x mm x mm) | 600 x 250 x 250 |
| UPC | 193134001293 |
| Weight (kg) | 9.3 |
| Weight (lb) | 20.503 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 0882215 |
| DAF | 0883545 |
| DAF | 0883548 |
| DAF | 882215 |
| DAF | 883545 |
| DAF | 883548 |
| DOLL | 7013074 |
| FAYMONVILLE | 133728 |
| FAYMONVILLE | 133729 |
| JOHN DEERE | WZ2480211 |
| KÄSSBOHRER | 21151105026 |
| KÄSSBOHRER | 21151105027 |
| LANGENDORF | 1263086 |
| LANGENDORF | 1266839 |
| LECITRAILER | 4112040 |
| MAN | N2521120014 |
| MAN | ZG046310002 |
| NOOTEBOOM | 12176 |
| NOOTEBOOM | 2501600 |
| NOOTEBOOM | 2502430 |
| PACCAR | 0879094 |
| PACCAR | 0879095 |
| PACCAR | 0883548 |
| SAF | 4454113000 |
| SCANIA | 1854664 |
| SCANIA | 1935389 |
| SCANIA | 1935390 |
| SCANIA | 2089705 |
| SCANIA | 2089707 |
| SCANIA | 2089756 |
| TIRSAN | 21151105026 |
| TIRSAN | 21151105027 |
| VOLVO | WA9253761060 |
