Description

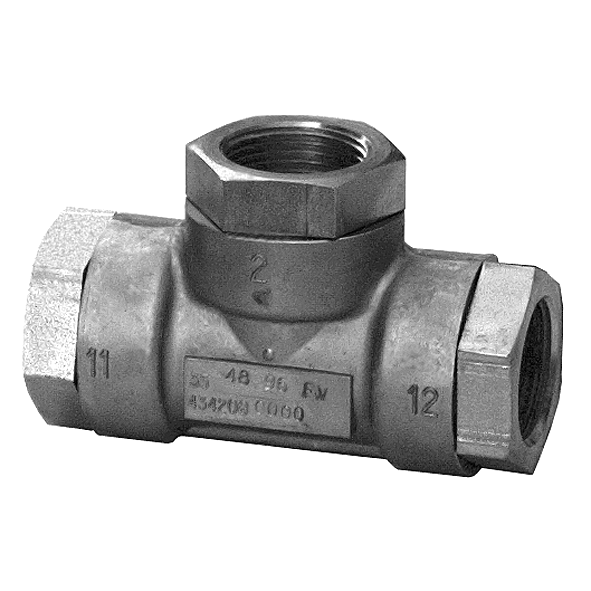

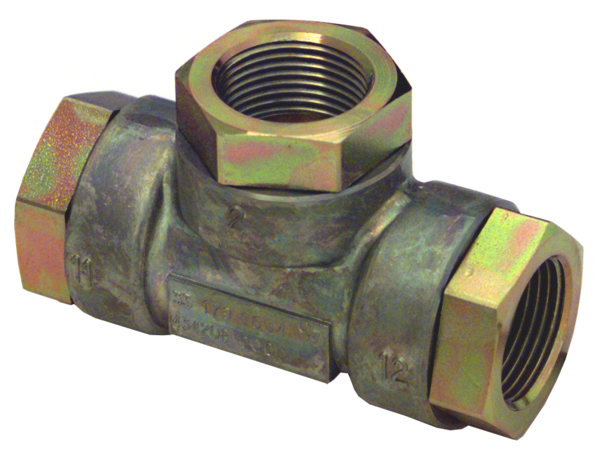

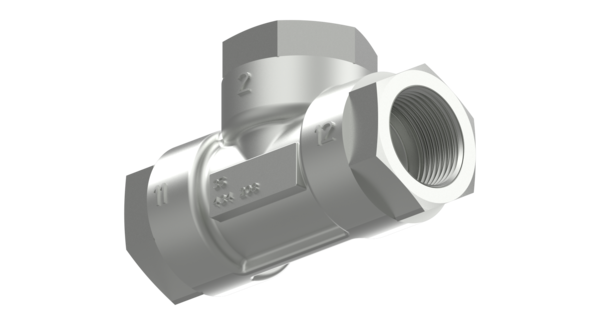

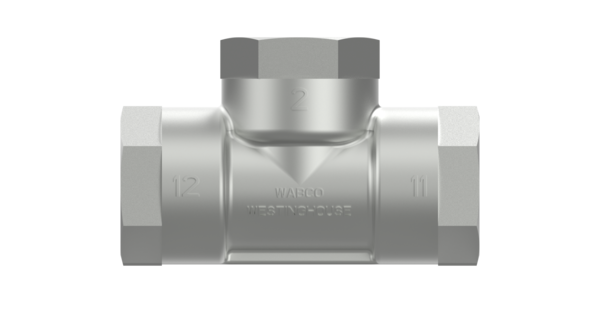

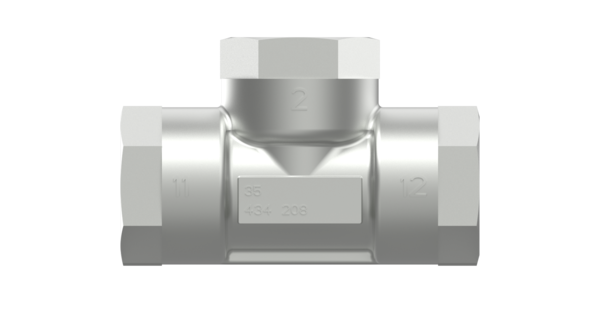

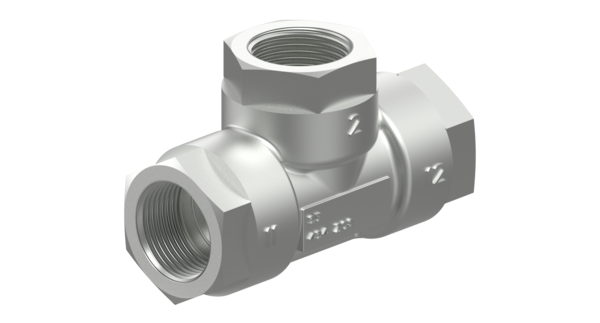

Double Check Valve
Part Number: 4342080000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.12502 |
| Max. operating pressure | 10.0 bar |
| Mounting | Via pipework only |
| Nominal diameter | 12.0 mm |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851004399 |
| Size (mm x mm x mm) | 76 x 47 x 35 |
| UPC | 193133275978 |
| Weight (kg) | 0.255 |
| Weight (lb) | 0.56218 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BENALU | 118839021 |
| DAF | 1517988 |
| EVOBUS | 8283621000 |
| EVOBUS | 8285303000 |
| EVOBUS | A0014292444 |
| FAUN | 99701438439 |
| IKARBUS | 1614531 |
| IRISBUS | 4342080000 |
| IVECO | 04457865 |
| IVECO | 60160709 |
| IVECO | 106858 |
| IVECO | 4457865 |
| KEMPF | 2107002 |
| KÄSSBOHRER | 82836210000 |
| KÖGEL | 77398 |
| KÖGEL | 6500335 |
| KÖGEL | 277398 |
| LANGENDORF | 1230219 |
| LEYLAND DAF | 834063 |
| LIEBHERR | 5029552 |
| LIEBHERR | 502955277 |
| MAFI | 5663000 |
| MAFI | 0005663000 |
| MAN | 81521306052 |
| MAN | 81521306043 |
| MERCEDES-BENZ | 0014292444 |
| MERCEDES-BENZ | A0014292444 |
| MERCEDES-BENZ | 4342080000 |
| NEOPLAN | 1102681545000 |
| NEOPLAN | 81521306043 |
| NEOPLAN | 371VE033 |
| OTOKAR | AIF0078 |
| RENAULT | 5000039138 |
| RENAULT | 5000039183 |
| RENAULT | 5021170109 |
| SCANIA | 2089903 |
| SCHMITZ CARGOBULL | 82836210000 |
| STEYR | 99000362200 |
| STEYR | 79100360031 |
| VOLVO | 79379137 |
| VW | 600607265 |
