Description

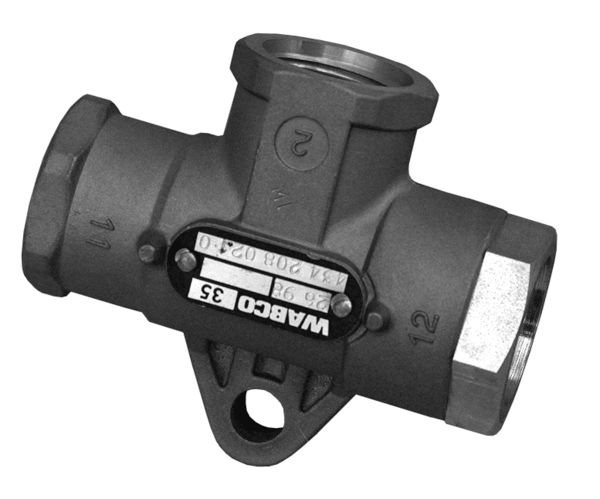

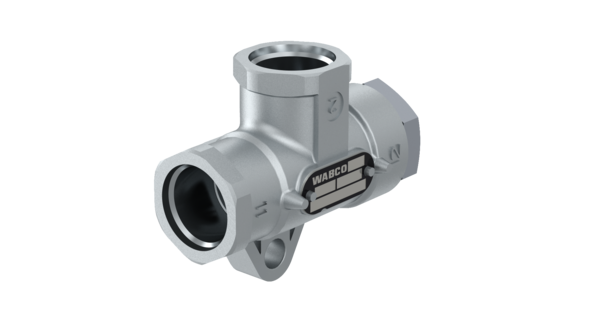

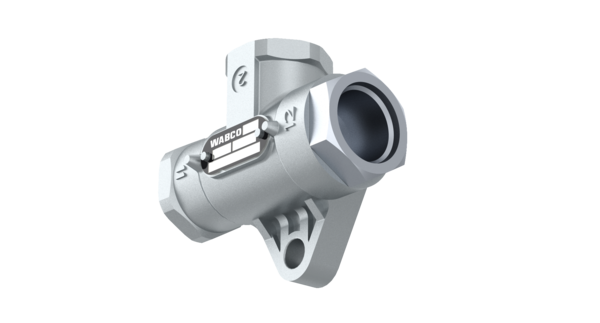

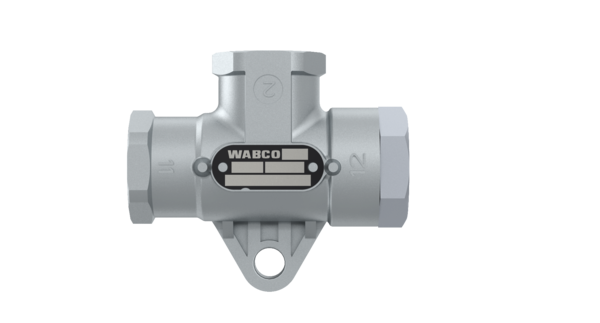

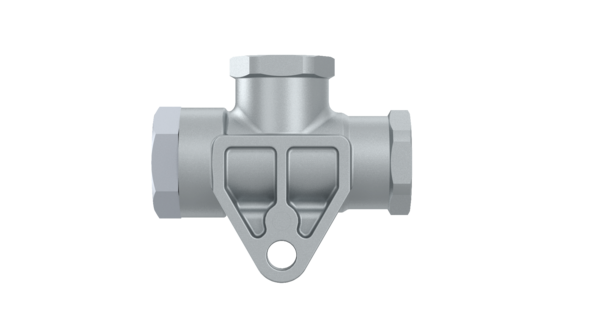

Double Check Valve
Part Number: 4342080210
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0.165 |
| Max. operating pressure | 10.0 bar |
| Mounting | Flange |
| Nominal diameter | 12.0 mm |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875176749 |
| Size (mm x mm x mm) | 76 x 62 x 35 |
| UPC | 193133438427 |
| Weight (kg) | 0.13 |
| Weight (lb) | 0.2866 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FAYMONVILLE | 42778 |
| FREIGHTLINER | 9628S4342080210 |
| HENDRICKSON | NB1741 |
| IRISBUS | 5010038414 |
| IVECO | 5010038414 |
| IVECO | 50313 |
| KENWORTH | S434-208-021-0 |
| LOHR | A05020114 |
| MACK | 8235-S4342080210 |
| MACK | 6300-4342080210 |
| MERCEDES-BENZ | A0014292444 |
| MERCEDES-BENZ | 0014292444 |
| MERITOR | S4342080210 |
| NOOTEBOOM | 307020 |
| PACCAR | 1325343 |
| PETERBILT | S434-208-021-0 |
| RENAULT | 5010038414 |
| RENAULT | 25313604 |
| VAN HOOL | 637211710 |
| VDL | 28220300300 |
| VDL | 190365 |
| VDL | 20190365 |
| VOLVO | 25313604 |
| VOLVO | 5010038414 |
| VOLVO | WAB4342080210 |
